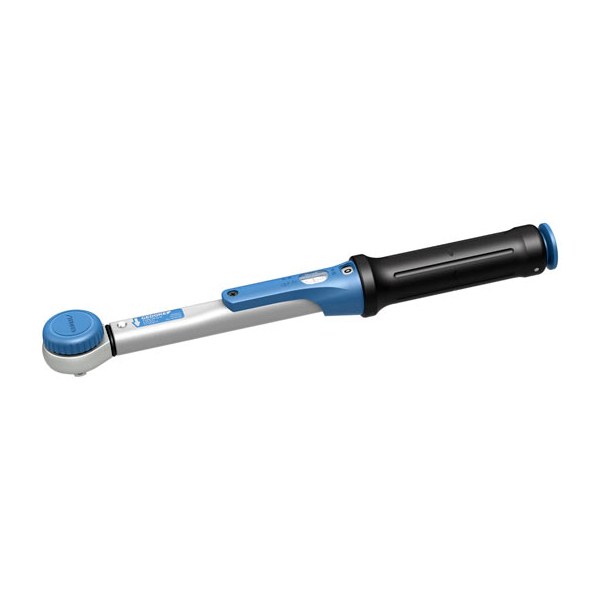

Gedore 4550 20 - Torque Wrench TORCOFIX K 1-850 Nm/0.75-630 lbf.ft


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Gedore 4550 20 - Torque Wrench TORCOFIX K 1-850 Nm/0.75-630 lbf.ft

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Controlled screw tightening in the most widely used range of 1 - 850 N·m / 0.75 - 630 lbf·ft (guide for screws M3-6.9 to M24-8.8, M30-5.6)
  • Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades Features:
  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
  • For controlled bi-directional tightening
  • 1/4", 3/8", 1/2"interchangeable mushroom head with ball locking device. As from 3/4"with push through square drive with pin-locking mechanism
  • Sturdy, satin chrome-plated tubular steel construction, with chrome-plated ratchet head and top-grade plastic parts
  • Ergonomically shaped, convenient black plastic handgrip with calibration aid
  • Dual scale N·m and lbf·ft below a window with a magnifying-glass effect
  • with micrometre scale for main N·m scale for setting interim values
  • Release system triggers a tactile and audible signal
  • Ergonomic system for torque adjustment
Product Specifications

GENERAL

Brand:
Gedore
Diameter Of Head:
44 mm
Distance Housing Square Drive:
35 mm
Distance middle of handgrip to pivot point:
394.5 mm
Drive connector square:
1/2 inch
Height:
33 mm
Length:
485.0 mm
Model:
4550 20
Product:
Torque wrench TORCOFIX K 1-850 Nm / 0.75-630 lbf.ft
Range of work:
20- 200 N.m (min/max)
Range of work / measurement lbf.ft:
15-150 lbf·ft (min/max)
Scale Divisions:
10 Nm
Scale Ring Graduation:
1 N.m
Weight:
1 Kg
