Buy Gedore 4549 05 - Torque Wrench TORCOFIX K 1-850 Nm/0.75-630 lbf.ft Online
Gedore

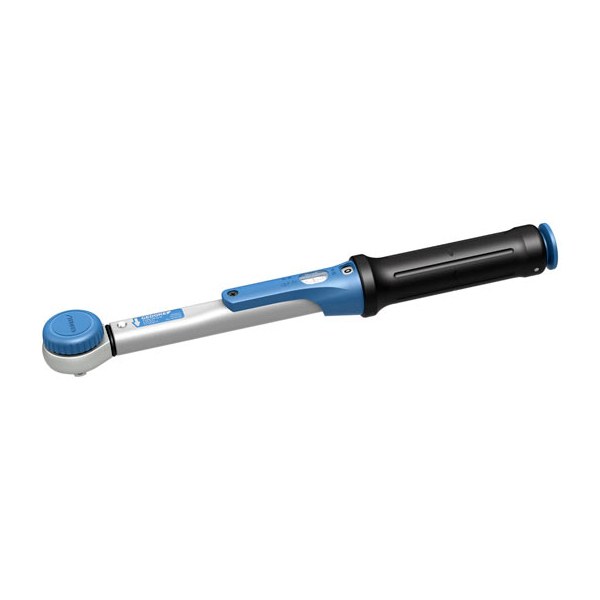

Gedore 4549 05 - Torque Wrench TORCOFIX K 1-850 Nm/0.75-630 lbf.ft


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Gedore

Gedore 4549 05 - Torque Wrench TORCOFIX K 1-850 Nm/0.75-630 lbf.ft

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Controlled screw tightening in the range 40-200 N·m / 30-150 lbf·ft
  • For use in almost all industrial manufacturing areas Features:
  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specificationof the standard (+/- 4 %) is exceeded.
  • 1/2"square drive with ball locking device DIN 3120 - A 12.5, ISO 1174
  • Automatic short-path actuation with tactile impulse and audible signal
  • Dual scale with a scale graduation of 5 N·m and 5 lbf·ft
  • with push-button release Technical advantage/Function:
  • Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
  • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
  • Extremely low wear attributable to reduced forces in a unique lever mechanism
  • Forged lever chain from our own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
  • Single- and double-square drive for controlled bi-directional tightening
Product Specifications

GENERAL

Brand:
Gedore
Diameter Of Head:
35 mm
Distance Housing Square Drive:
26 mm
Distance middle of handgrip to pivot point:
256.5 mm
Drive connector square:
3/8 inch
Height:
24 mm
Length:
334.5 mm
Model:
4549 05
Product:
Torque wrench TORCOFIX K 1-850 Nm / 0.75-630 lbf.ft
Range of work:
3.5- 37 lbf·ft
Scale Divisions:
2.5 Nm
Scale Ring Graduation:
0.25 N.m
Weight:
0.54 Kg
