Buy Gedore 1.07/4 HSP3 - 3 Arm Pattern Universal Puller Hydraulic Online

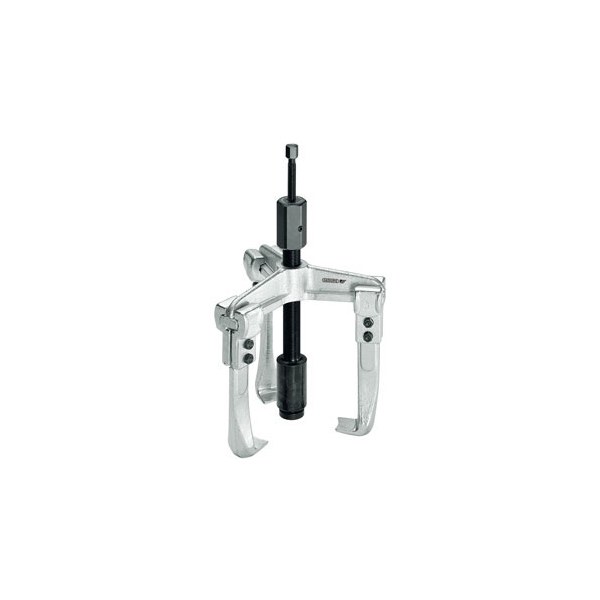

Gedore 1.07/4 HSP3 - 3 Arm Pattern Universal Puller Hydraulic


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Gedore 1.07/4 HSP3 - 3 Arm Pattern Universal Puller Hydraulic

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc.
  • Drop forged pattern
  • By reversing the legs, this tool may be used as an internal or external puller
  • With the hydraulic spindle, a controlled and safe pulling action is possible at all times
  • The pressure piece can be replaced by a tip and lengthened, as required.
  • The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal.
  • Also available with standard spindle
Product Specifications

GENERAL

Brand:
Gedore
Clamping reach:
140 mm
Clamping spread -max- external pulling:
450 mm
Clamping spread -max- internal pulling:
530 mm
Depth of hooked foot:
28 mm
LLoading max. N.m:
28 N.mt
Loading max. t:
10.0 t
Model:
1.07/4 HSP3
Product:
Universal puller hydraulic, 3-arm pattern
Spindle Size:
1.06/HSP3
Thickness of hooked foot at tip:
6.5 mm
Weight:
19.4 Kg
Width of hooked foot:
36 mm
