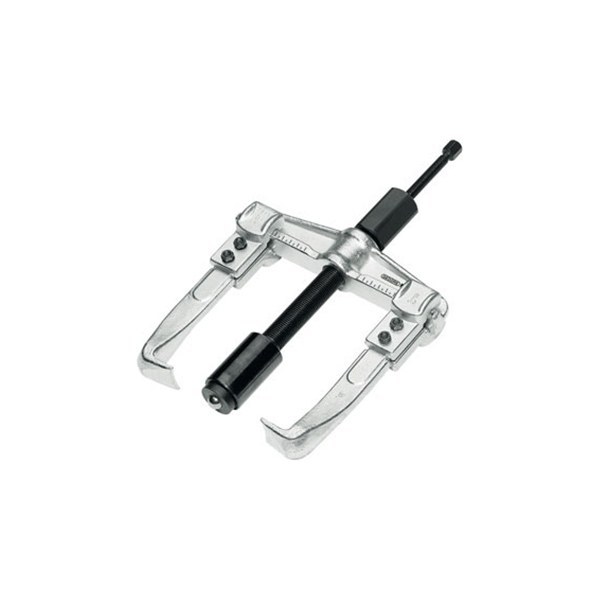

Gedore 1.06/3A HSP2 - 2 Arm Pattern Universal Puller Hydraulic


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Gedore 1.06/3A HSP2 - 2 Arm Pattern Universal Puller Hydraulic

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Strong drop forged pattern
  • Scale for uniform adjustment of the puller legs. Allows centered pulling, with optimized  application of force, even when extremely high pulling forces are required
  • Reversible legs for internal or external pulling
Product Specifications

GENERAL

Area of Application:
Industry
Brand:
Gedore
Clamping reach:
125 mm
Clamping spread -max- external pulling:
350 mm
Clamping spread -min- internal pulling:
420 mm
Depth of hooked foot:
28 mm
Hydraulic Spindle:
1.06/HSP2
Loading max. t:
7.5 t
Loading max.N.m:
14 N.m
Model:
1.06/3A HSP2
Product:
Universal puller hydraulic, 2-arm pattern
Thickness of hooked foot at tip:
6.5 mm
Weight:
8.8 Kg
Width of hooked foot:
36 mm
