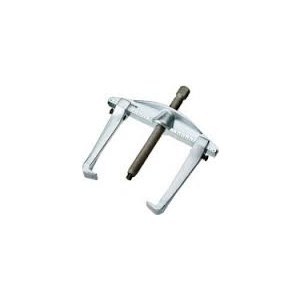

Gedore 1.06/31 B - 27 mm 2 arm Universal puller Pattern, rigid legs with leg brake


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Gedore 1.06/31 B - 27 mm 2 arm Universal puller Pattern, rigid legs with leg brake

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Strong drop forged design
  • Rigid legs forged from one piece
  • The legs clamp automatically when under tension
  • Leg brake ? prevents unintentional leg slipping. The leg can be slid along the cross?beam at the push of a button
  • Scale for uniform adjustment of the puller legs. Allows centered pulling, with optimized application of force, even when extremely high pulling forces are required
  • Reversible legs for internal or external pulling
  • Extra or replacement legs increase versatility
  • Upgradeable with hydraulic spindle
Product Specifications

GENERAL

Brand:
Gedore
Clamping reach:
200 mm
Clamping spread -max- external pulling:
250 mm
Clamping spread -max- internal pulling:
340 mm
Clamping spread -min- internal pulling:
125 mm
Depth of hooked foot:
32 mm
Loading max. t:
7,5 t
Model:
1.06/31 B
Product:
Universal Puller 2-arm pattern, rigid legs with leg brake
Scale Divisions:
x
Spindle size (Thread x Length):
G 3/4 x 280
Thickness of hooked foot at tip:
5.0 mm
Weight:
6.7 Kg
Width Across Flat / Actuating Hexagon:
27 mm
Width of hooked foot:
36 mm
