Buy Gedore 1.06/2A - 2 arm Universal puller Online

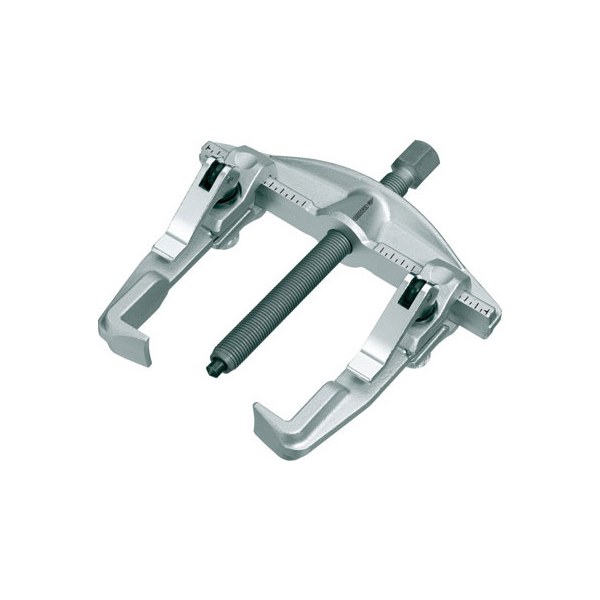

Gedore 1.06/2A - 2 arm Universal puller


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Gedore 1.06/2A - 2 arm Universal puller

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc.
  • Strong drop forged design
  • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  •  By reversing the legs, this tool can be used as an internal or external puller
  •  Extra or replacement legs increase versatility
  • Upgradeable with hydraulic spindle (see table))
Product Specifications

GENERAL

Area of Application:
Industry
Brand:
Gedore
Clamping reach:
150 mm
Clamping spread -max- external pulling:
200 mm
Clamping spread -max- internal pulling:
260 mm
Clamping spread -min- internal pulling:
90 mm
Depth of hooked foot:
18 mm
Loading max. t:
5 t
Model:
1.06/2A
Product:
Universal puller 2-arm
Spindle size (Thread x Length):
G 1/2 x 210
Thickness of hooked foot at tip:
3.5 mm
Weight:
3.5 Kg
Width Across Flat / Actuating Hexagon:
22 mm
Width of hooked foot:
30 mm
