Description

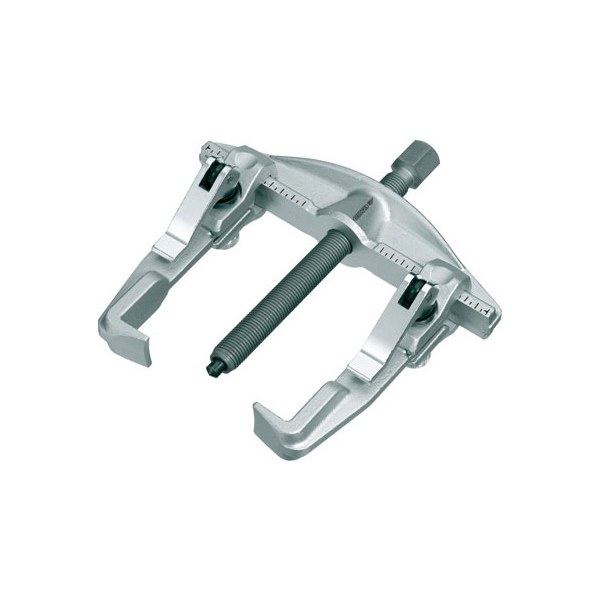

  • For the safe and quick removal of pulleys, wheels, ball bearings, etc.
  • Strong drop forged pattern
  • Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
  • Scale for uniform adjustment of the pullerlegs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  • With the newly-developed cantilever hook design, it is possible to use these higher forces without losses over the whole width of the cross-beam
  • The quick-action adjustment feature supports the energy-saving and fast operation
  • Spindle with replaceable ball and tip point
  • Upgradeable with hydraulic spindle (see table)



Product Specifications

GENERAL

Brand:
Gedore
Clamping reach:
200 mm
Clamping spread -max- external pulling:
350 mm
Clamping spread -max- internal pulling:
420 mm
Clamping spread -min- internal pulling:
150 mm
Depth of hooked foot:
28 mm
Loading max. t:
7.5 t
Model:
1.04/3A
Product:
Universal puller 2-arm
Spindle size (Thread x Length):
G 3/4 x 280
Thickness of hooked foot at tip:
6.5 mm
Weight:
7.7 Kg
Width Across Flat / Actuating Hexagon:
27 mm
Width of hooked foot:
36 mm
