Buy G-Tech GT-9525 - Digital Insulation Tester Online

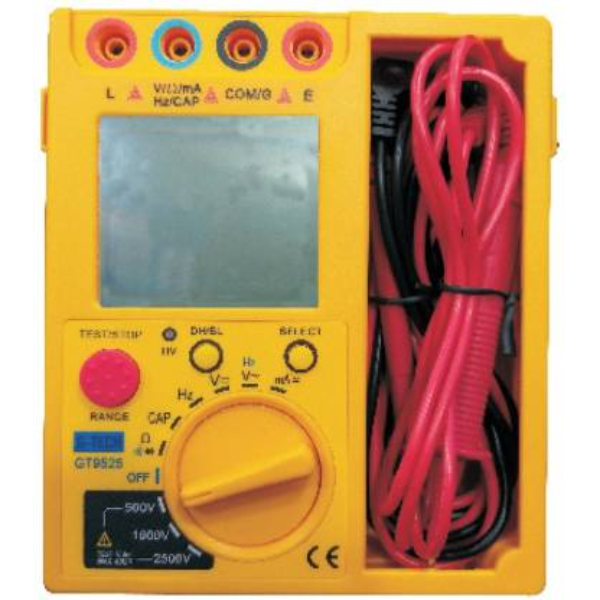

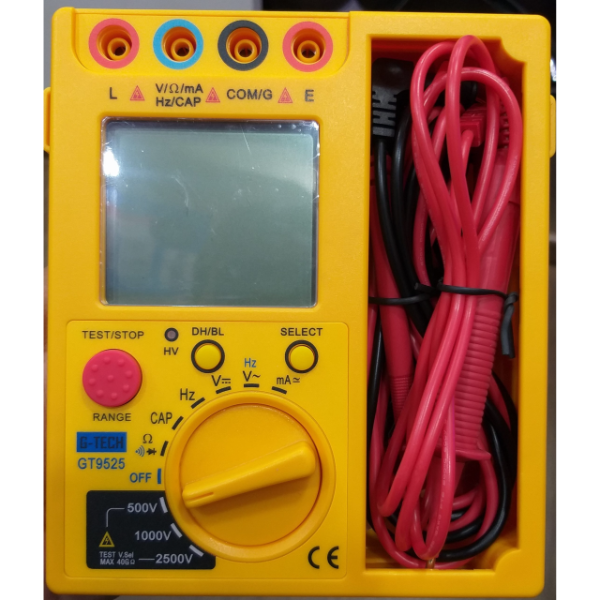

G-Tech GT-9525 - Digital Insulation Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

G-Tech GT-9525 - Digital Insulation Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The G-Tech - Digital Insulation Tester is a multimeter functioning product that provides accurate results in challenging working conditions. The Digital Insulation Tester is a completely insulated electrical meter determining the motor winding and insulated wire state. In addition, the ergonomic design of this Insulation Tester prevents hazards like short-circuiting and electric shocks.
Product Specifications:
Brand: G-Tech
Model: GT-9525
Country of origin: China
Product: Digital Insulation Tester
Capacitance: 40 nF-400 nF-4 ?F-40 ?F, +/-3%
Data Hold: Available
DC Voltage: 400 mV-4 V-40 V-400 V-1000 V, +/-0.5%
DC Current: 20 mA-400 mA, +/-1%
Dimensions: 170x70x70 mm
Frequency: 40-400-4k-40k-4M Hz
Overload Protection: Available
Power Supply: 1.5 Vx 6A Battery
Weight: 950 g
Resistance: 400-40k-400k-4M-40M ohm, +/-0.8%
Key Features:
Protection from overload damages.
Jumbo LCD for result accuracy.
User-friendly tester with hassle-free functions.
Sturdily built and suitable for harsh climatic conditions.
A fully insulated structure prevents the chances of electrocution.
Compact and durable design.



Product Specifications

GENERAL

AC current:
20 mA-400 mA, +/-1%
AC voltage:
400 mV-4 V-40 V-400 V-700 V, +/-0.8%
Brand:
G-Tech
Capacitance:
40 nF-400 nF-4 ?F-40 ?F, +/-3%
Country of Origin:
China
Data hold:
Yes
DC current:
20 mA-400 mA, +/-1%
DC voltage:
400 mV-4 V-40 V-400 V-1000 V, +/-0.5%
Dimensions:
170x70x70 mm
Display:
3 3/4 Jumbo LCD Display, 3999 Counts
Dual Display:
Yes
Frequency:
40-400-4k-40k-4M Hz
Model:
GT-9525
Overload Protection:
Yes
Power Supply:
1.5 Vx 6A Battery
Resistance:
400-40k-400k-4M-40M ohm, +/-0.8%
Test Insulation:
Resistance at 500 V/1000 V/2500 V with range of 0.25 m?-4 G?
Warranty:
1 year Against Manufacturing Defects
Weight:
950 grams
