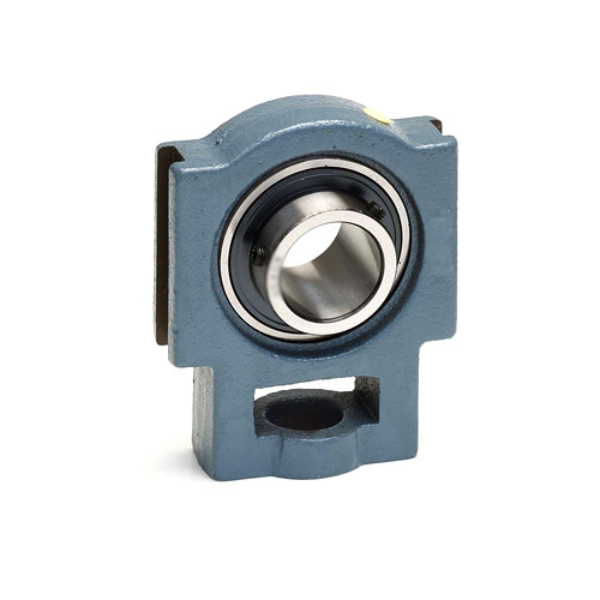

The FYH - 70 mm, Pillow Block Bearing has a sturdy structure to deliver accurate results in difficult working conditions. It has an oil-proof and heat resistant synthetic rubber seal at the steel slinger to prevent the entry of dust, moisture, and other harmful contaminants. The 70 mm, Pillow Block Bearing is suitable for agriculture, food and beverage packaging, textile, and other industrial applications. The Pillow Block Bearing has unique heat-treated steel rings to protect spherical bearings. In addition, the slotted design of this Block Bearing helps in the accurate positioning of the shaft.
Product Specifications:
Brand: FYH
Model: UCT 314
Country of origin: China
Product: Pillow Block Bearing
Bore Diameter: 70 mm
Housing Material: Cast Iron
Bearing Material: Chrome Steel
Total length: 252 mm
Finish: Colour painted
Series: UCT
Shaft axis distance: 202 mm
Weight: 13.4 Kg
Width: 78 mm
Key Features:
Two set screws at the inner ring.
Guide frame and positioning screw for accurate mounting.
Compensate for minor angular misalignment.
