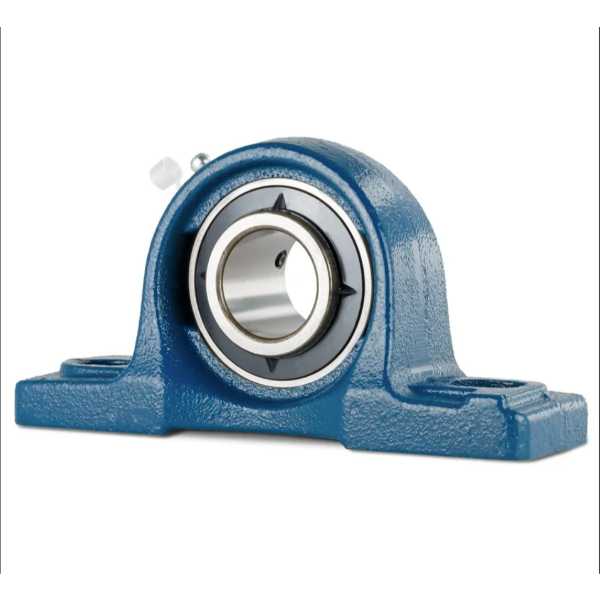

The FYH - 85 mm, Pillow Block Bearing has a robust cast iron structure to withstand heavy loads during industrial machining. It has unique heat-treated steel rings to protect enclosed bearings from environmental damage. Adequately lubricated bearings of the 85 mm, Pillow Block Bearing facilitate uninterrupted smooth operation in difficult working conditions. The Pillow Block Bearing has deep groove bearing units to withstand radial and substantial thrust loads. It has two dowel bases at the housing for accurate positioning. This Block Bearing has an adequate locking system for convenient assembly.
Product Specifications:
Brand: FYH
Model: UCP 317
Country of origin: China
Product: Pillow Block Bearing
Bore Diameter: 85 mm
Total length: 420 mm
Series: UCP
Material: Cast iron
Finish: Colour painted
Shaft axis distance: 112 mm
Weight: 1.45 Kg
Width: 96 mm
Dimensions: 165x42x82 mm
Key Features:
Tightly sealed bearing compartment.
Unique heat-treated steel rings.
Adequately greased spherical bearings.
Compact cast iron housing.
Adequate locking system.
