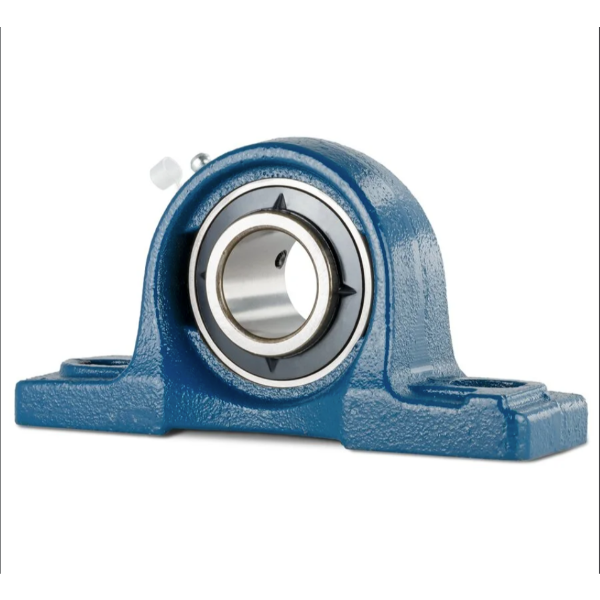

The FYH - 40 mm, Pillow Block Bearing has a robust cast-iron structure to provide the necessary strength to perform multiple industrial tasks. It has a completely sealed bearing section to protect the parts from environmental damages and challenging working conditions. The 40 mm, Pillow Block Bearing has a square flange double and a bolted flange to easily and accurately position during the mounting process. The Pillow Block Bearing has a colour painted finish to avoid multiple atmospheric damages. In addition, this Block Bearing has a lubricated self-contained bearing set for smooth and noiseless operation.
Product Specifications:
Brand: FYH
Model: UCP 308
Country of origin: China
Product: Pillow Block Bearing
Bore Diameter: 40 mm
Total length: 220 mm
Series: UCP
Shaft axis distance: 60 mm
Weight: 1.45 Kg
Width: 52 mm
Material: Cast iron
Finish: Colour painted
Dimensions: 165x42x82 mm
Key Features:
Square flange and bolt flange.
Proper positioning.
Tempered raceways for durability.
Break-resistant robust structure.
Sufficient lubrication for smooth operation.
