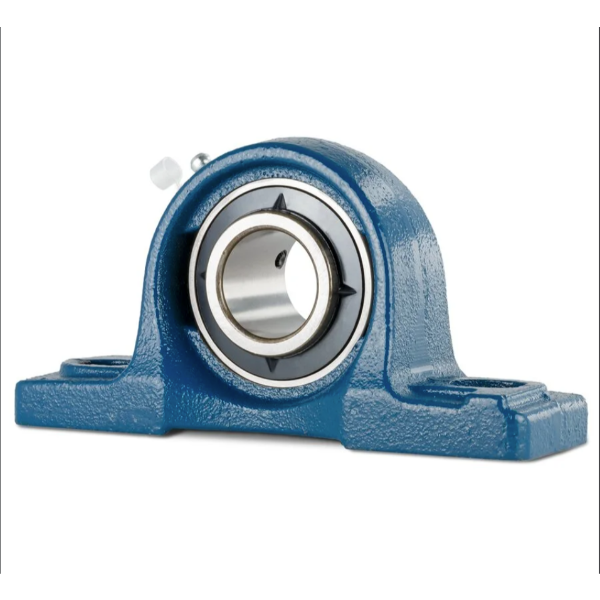

The FYH - 25 mm, Pillow Block Bearing has a painted colour finish to prevent atmospheric damage. It has a strong and sturdy structure to sustain heavy loads without enduring any damage efficiently. The 25 mm, Pillow Block Bearing has a completely sealed bearing section to protect the parts from environmental damages and challenging working conditions. The Pillow Block Bearing provides proper self-alignment with the appropriate positioning of the inner and outer rings. This Block Bearing has a pre-lubricated self-contained bearing for smooth and noiseless operation. It has unique heat-treated steel rings to protect bearings from any damage.
Product Specifications:
Brand: FYH
Model: UCP 305
Country of origin: China
Product: Pillow Block Bearing
Bore Diameter: 25 mm
Total length: 175 mm
Series: UCP
Shaft axis distance: 45 mm
Weight: 1.45 Kg
Width: 38 mm
Dimensions: 165x42x82 mm
Key Features:
Self-alignment technology.
Deep groove single-row bearing.
Unique locking pin.
Easy installation.
Sufficient lubrication of the spherical bearing.
