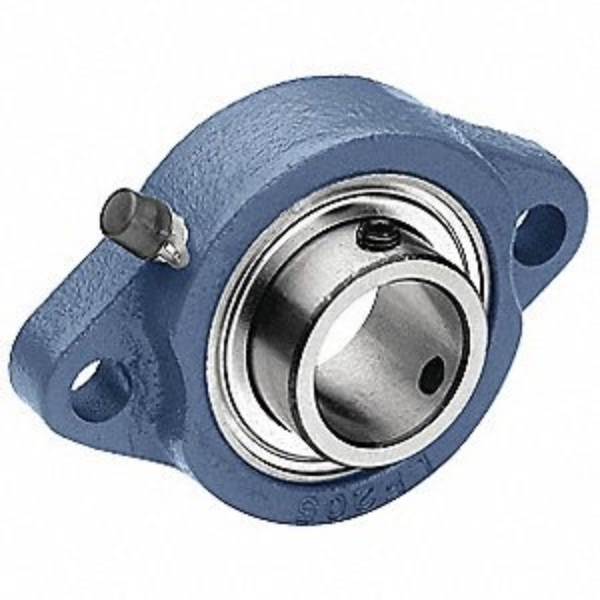

The FYH - 25 mm, Pillow Block Bearing is a versatile oval flange unit with set screws. It is the most popular mounted ball unit. The bottom of the housing mounting section has a rib for a robust unit. It can withstand heavy loads from several directions. It is applicable for severe loading and shock load conditions. This 25 mm, Pillow Block Bearing is compact in design with optimal sealing devices. The Pillow Block Bearing is good alignment support for the screw. Block Bearing aligns with ease during operation, and you can use it conveniently for mounting and dismounting.
Product Specifications:
Brand: FYH
Country of Origin: Japan
Model: UCFL 205
Bearing unit type: Pillow Block
Fixed Housing Width: 16 mm
Mounting Hole Distance: 99 mm
Bore Diameter: 25 mm
Shaft diameter (minimum): 12 mm
Shaft diameter (maximum): 140 mm
Basic Load (Cr): 14 KN
Basic Load (Cor): 7.85 KN
Weight: 0.63 Kg
Width: 130 mm
Key Features:
Alloy steel body
Corrosion-resistant
