Description

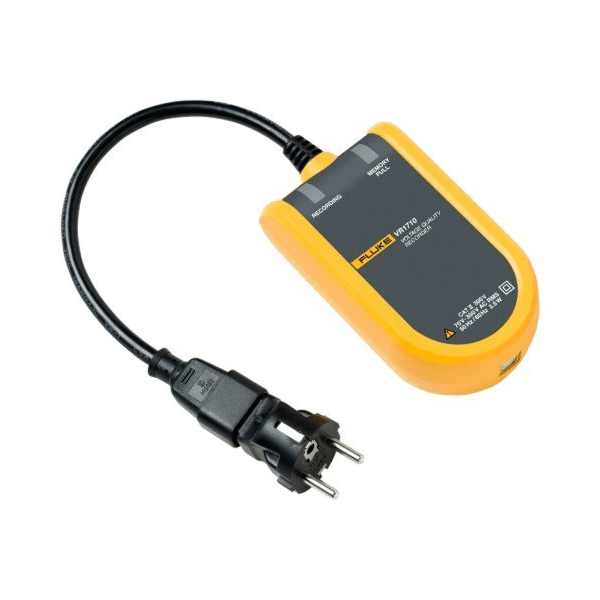

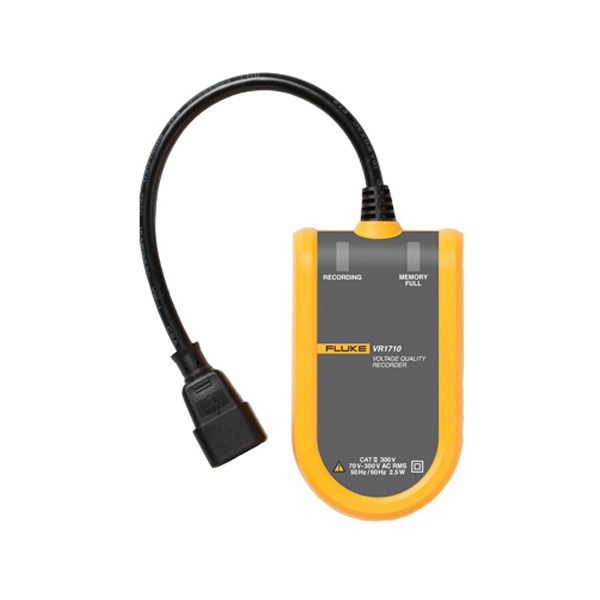

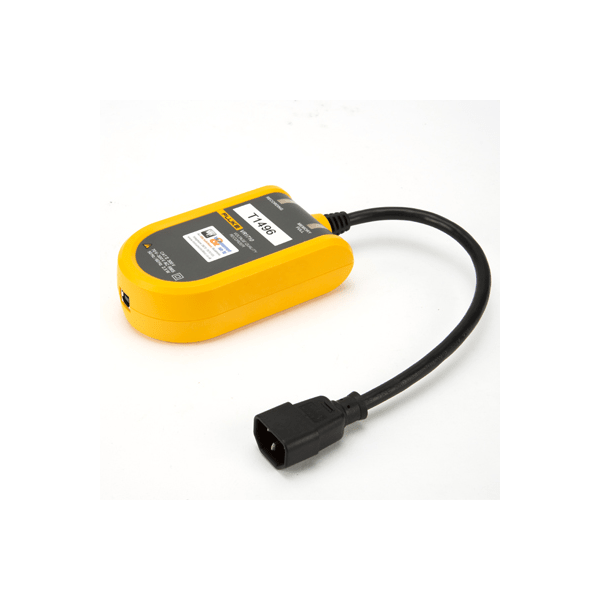

The Fluke VR1710 is a single-phase, plugin voltage quality recorder that provides fast and easy recording of voltage trends, dropouts, harmonics and general power quality including dips and surges to help maintenance and facilities management personnel easily pinpoint the root cause of voltage problems. Voltage quality parameters including RMS average, transients, flicker, and harmonics up to the 32nd are recorded using a user selected average period from 1 second to 20 minutes.

Features:

  • Clear graphical summary of data and quick overview of key power quality parameters
  • Get the complete picture with Min, Max, Average RMS values (1/4 cycle) with time stamps
  • See the detailed with actual transient display (> 100 μs) with time stamp
  • Comprehensive analysis of Individual harmonic and THD values with trends
  • Voltage recording-Monitors and records supply voltage; measures RMS average, minimum and maximum values, and checks whether the socket outlet is providing voltage within tolerance.
  • Distortion measurement-Measure frequency and harmonics; check whether the distorting loads (UPS systems, drives, etc.) are affecting your other equipment.
  • Flicker measurement-Quantify the affects of switching loads on lighting systems.
  • Voltage transients Capture those intermittent, momentary events that may be affecting your equipment; the full waveform is captured with date, timestamp, and duration.
Product Specifications

GENERAL

Brand:
Fluke
Dips/Interruptions:
Yes
Display:
LED
Frequency:
Yes
Min/Max/Avg RMS value:
Resolution 0.125 V
Model:
VR1710
Number of events:
175,000
Operating Voltage:
70 V to 300 V
Over-voltages:
Yes
Safety category rating:
CAT II 300 V
Size:
23x19.75x22.2 cm
Time resolution:
5 ms
Voltage resolution:
0.125 V
Weight:
0.8 kg
