Buy Fluke Norma 5000 - Power Analyzer Online

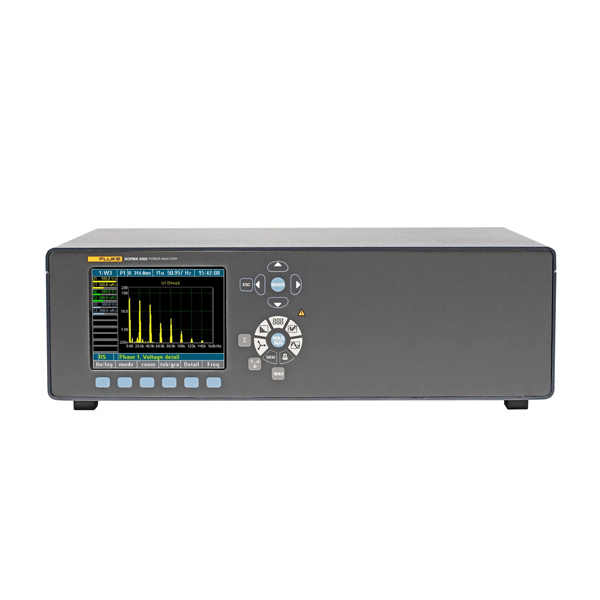

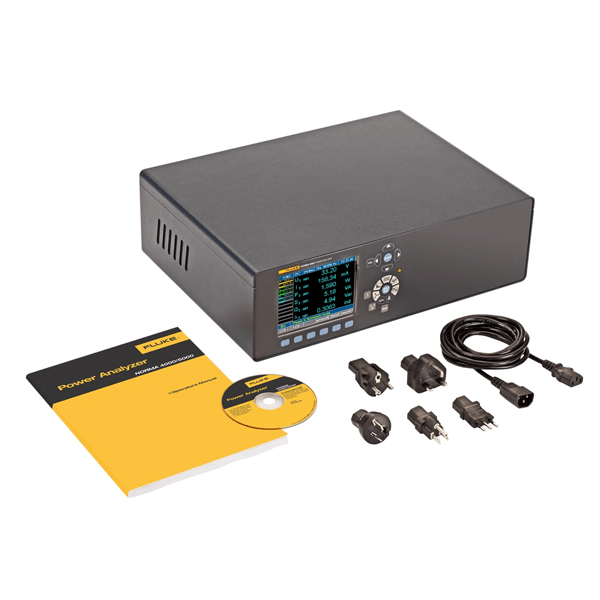

Fluke Norma 5000 - Power Analyzer


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

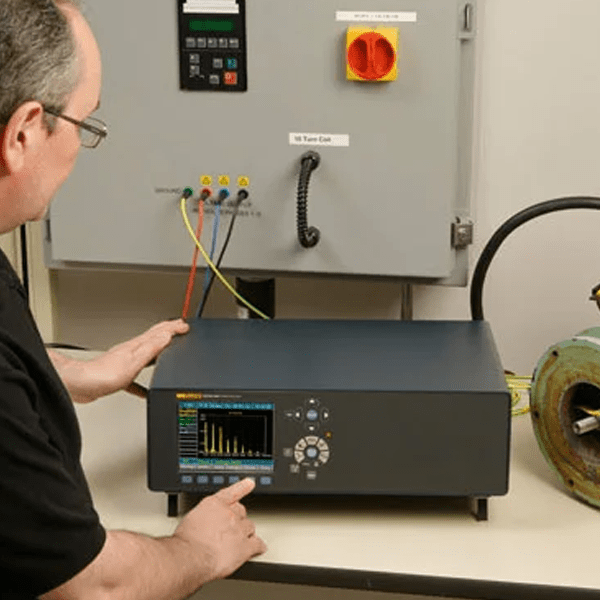

The compact Fluke Norma Series Power Analyzers provide the latest measurement technology to assist engineers with the development and testing of motors, inverters, lighting, power supplies, transformers and automotive components.

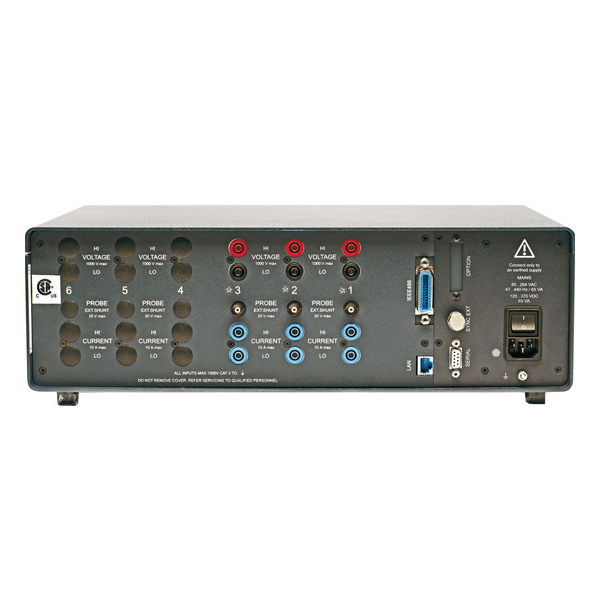

A unique user-configurable system design with plug-in power phases and other optional modules provides the flexibility to meet a variety of application measurement requirements. Recorded data and waveforms can be viewed clearly in the large color display and easily downloaded to a PC for analysis and report writing.

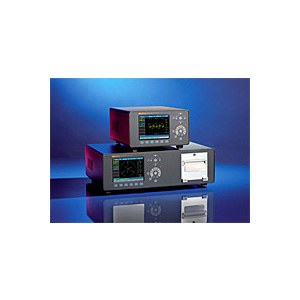

The Series consists of the Fluke Norma 4000 Three-Phase Power Analyzer and the Fluke Norma 5000 Six-Phase Power Analyzer. These rugged analyzers provide unmatched price performance for easy and reliable use in the fi eld, or as a bench unit in laboratories and on test benches.

Features:

  • Simple user interface ensures easy, intuitive operation
  • Unique user-confi gurable modular design
  • Simultaneous parallel acquisition of all phases
  • Voltage, current and power harmonics up to the 40th
  • Includes FFT analysis, vector diagram display, recorder function, and Digital Oscilloscope (DSO) mode
  • User selectable average time from 15ms to 3600s
  • Expandable on-board memory for storage of measured values
Product Specifications

GENERAL

Bandwidth:
dc to 3 MHz or dc to 10MHz depending on input module
Basic Accuracy:
0.2%, 0.1% or 0.03% depending on input modules
Brand:
Fluke
Climatic class:
KYG DIN 40040, maximum 85% relative humidity, non-condensing
Display:
Color, 5.7 inch / 144 mm-320x240 pixel
Housing:
Solid metal case
Model:
Norma 5000
Number of Phases:
3, 4 or 6
Operating temperature:
+ 5 °C to 35 °C
RS232 Interface:
Standard
Safety:
EN 61010-1 / 2nd Edition, 1000 V CAT II (600 V CAT III)
Size:
15cmx44.7cmx31.5 cm
Storage Temperature:
- 20 °C to 50 °C
Voltage Input Range:
0.3 V to 1000 V
Weight:
7 kg
