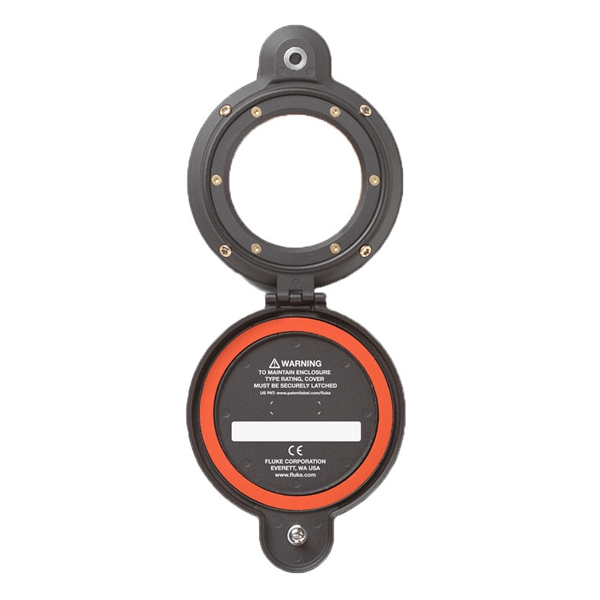

Fluke CV301 - CV Series ClirVu IR Windows


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Fluke CV301 - CV Series ClirVu IR Windows

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

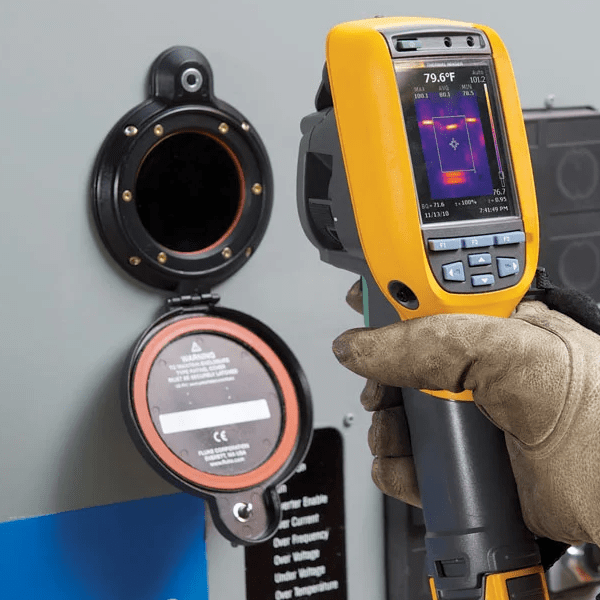

Increase the safety and speed of your electrical thermal imaging inspections with the new Fluke ClirVu infrared windows. Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.

Features:

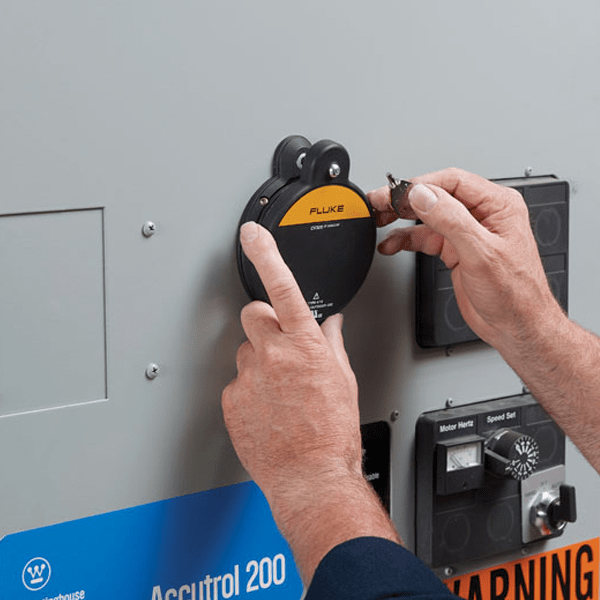

  • Save time with quick and easy installation-5 minutes or less
  • One technician
  • One hole with standard Greenlee punch
  • Panel door does not need to be removed
  • Grounds instantly to metal enclosure with patent-pending AutoGround process
  • Maintains panel arc test ratings up to 63kA when properly installed
  • Torture Tested to the highest arc blast test ratings
  • IEEE C37.20.7: 63 kA Arc tested at KEMA, UL50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14- 13:2012, and CE
  • Convenience of both quick turn or security keyed access
  • Fluke IR Windows offered in three sizes 50 mm, 75 mm and 95 mm (2 in, 3 in and 4 in)
  • Work permit requirements and NFPA 70E processes are significantly reduced
  • Full PPE is often not required so inspections are done faster and more comfortable
Product Specifications

GENERAL

AutoGround:
Yes
Brand:
Fluke
ClirVu Optic:
Yes
Humidity rating:
IEC60068-2-3 at TUV
IP Rating:
IP67 at TUV
Model:
CV301
NEMA Environment Type:
Type 4/12 (indoor/outdoor)
Operating temperature:
- 40 ºC to + 232 ºC and + 260ºC Intermittent
Optic insert diameter:
95 mm
Product:
CV Series ClirVu IR Windows
Size:
75 mm
Vibration rating:
IEC60068-2-6 at TUV
Voltage range:
Any
