Buy Fluke BT510 - 500 Series Battery Analyzer Online

Fluke BT510 - 500 Series Battery Analyzer


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

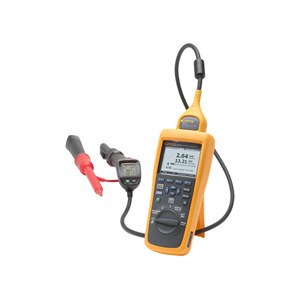

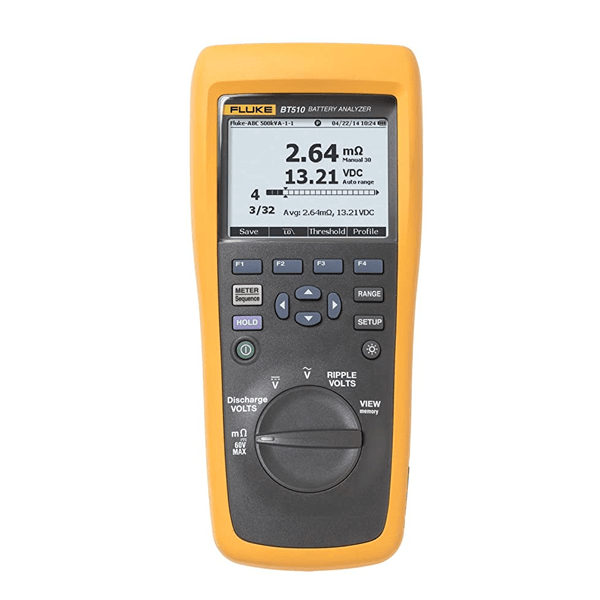

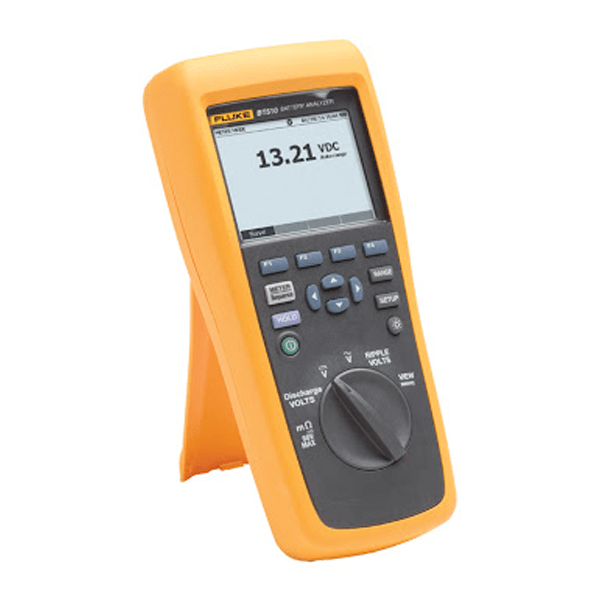

Fluke BT510 - 500 Series Battery Analyzer

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Fluke 500 Series Battery Analyzers cover a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using an automated string function testing and the test probe integrated infra-red temperature measurement system. 500 Series Battery Analyzers are designed for measurements on stationary batteries of all types.

Features:

  • The world's fastest battery measurements reduce time of a typical battery measurement with 50% from 8 seconds to 4 seconds.
  • Unique CATIII 600V safety rating
  • Hands free wearable design
  • Key measurements: Battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and battery temperature.
  • Sequence measurement mode: Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe).
  • Optimized user interface: Quick, guided setup ensures you're capturing the right data every time.
  • Threshold comparison: Configure multiple reference values and thresholds for resistance and voltage. Comparison result feedback after each measurement via visual and verbal cues.

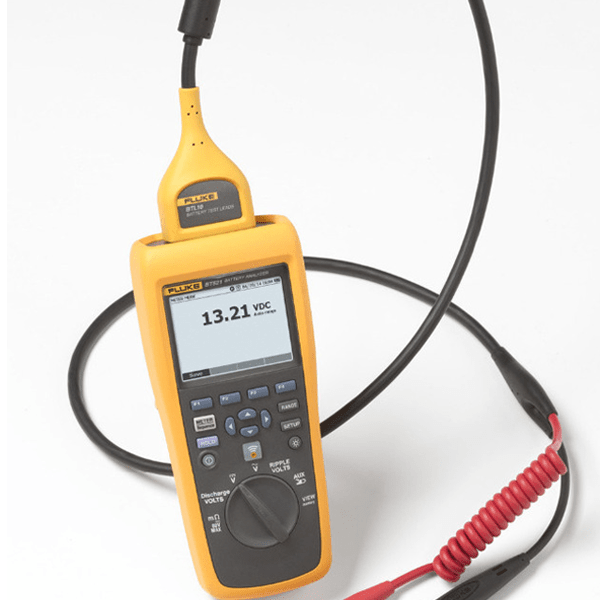

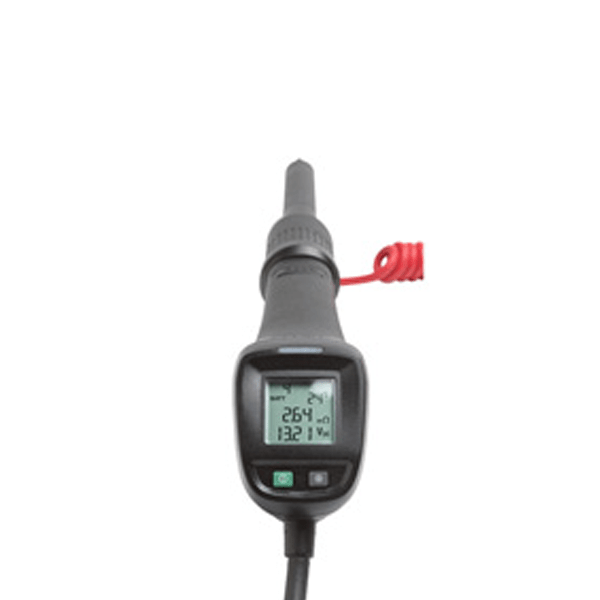

  • Intelligent test probe set (BT520 and BT521): Integrated LCD display, infrared temperature measurement (BT521 only), verbal audio feedback and captures voltage readings and temperature logging automatically or via integrated save button.
  • Enhanced data analysis: Quickly compare trends, analyze results and create reports with included battery management software.
  • Easy reporting: Generate PDF report on the PC software with analysis graphics and data table or quick email format report with csv fi le on the mobile app.
Product Specifications

GENERAL

AC voltage ripple:
600 mV-0.1 mV-3 % + 20 (20 KHz Max)
Brand:
Fluke
Drop test requirements:
1 meter
Frequency:
500 Hz-0.1 Hz-0.5 % + 8 (displayed with Vac and Aac)2
Interface:
USB mini
IP Rating:
IP40
Lithium-ion battery charging temperature:
0° C to 40° C
Model:
BT510
Operating temperature:
0 °C to 40 °C
Radio:
FCC Class A
Safety compliance:
600 V CAT III
Screen dimensions:
77x56 mm
Size:
220x103x58 mm
VAC:
600 V-0.1 V-2 % + 10 (45 Hz to 500 Hz with 800 Hz filter)
Vibration requirements:
MIL-PRF-28800F: Class 2
Weight:
850 g
