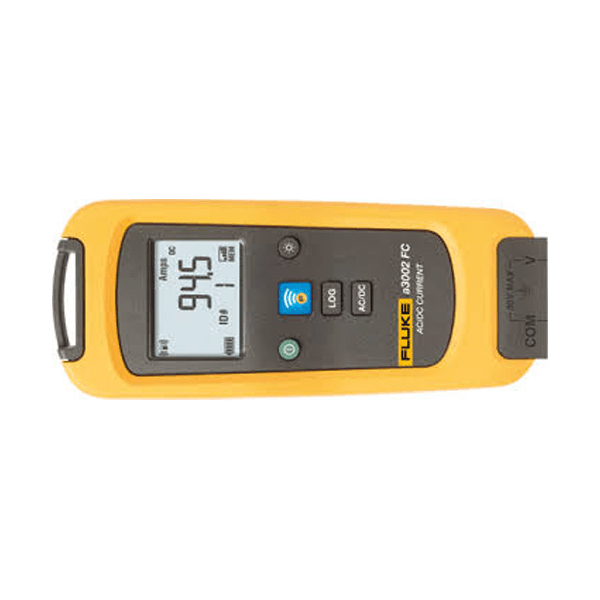

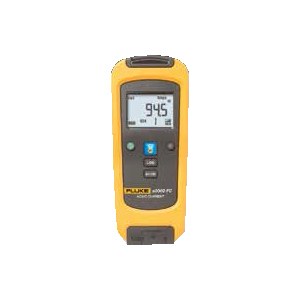

Fluke a3002FC - Wireless AC, DC Current Module

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 6-7 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Designed to be used with the i410 or i1010 AC/DC current clamps (not included with module). AC/DC current module that wirelesly relays measurements from the i410 or i1010 clamp accessory to other Fluke Connect enabled master units.

Features:

  • Measure up to 400 A AC or 400 A DC with i410 (sold separately)
  • Measure up to 600 A AC or 1000 A DC with i1010 (sold separately)
  • Use as a standalone meter or as part of a system

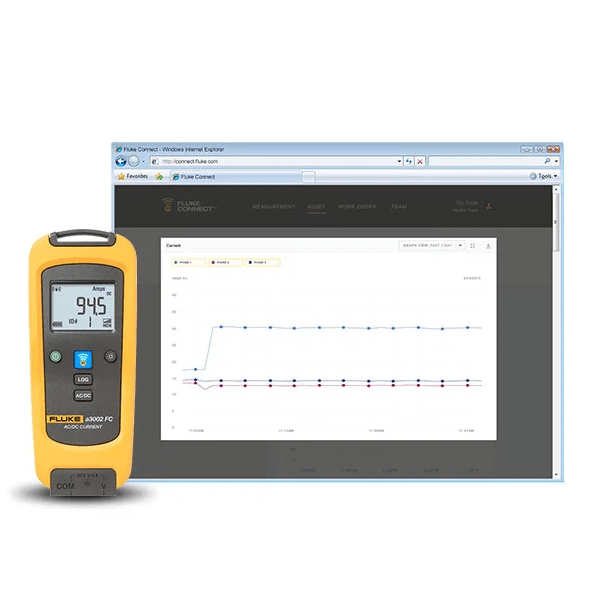

  • Logging function for recording and saving up to 65,000 readings
Product Specifications

GENERAL

Accuracy:
AC: 1.0% + 3, DC: 0.5% + 3 (45 Hz to 1000 Hz)
Battery type and life:
2 AA, NEDA 15 A, IEC LR6 / 400 hours
Brand:
Fluke
EMC:
EN 61326-1:2006
Ingress Protection rating:
IP42
LCD with Backlight:
3 ½ digits, 6000 counts, 4/sec update rate
Log rate/interval:
1 sec minimum/adjustable by PC or FC App
Maximum voltage between terminal and earth ground:
30 V DC or AC rms
Memory:
Record up to 65,000 readings
Model:
a3002FC
Pollution Degree:
2
Range:
600 A AC to 1000 A AC
Safety compliance:
IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition Pollution Degree 2
Safety rating:
CAT IV 600 V, CAT III 1000 V
Size:
16.0cmx6.6cmx3.8 cm
Weight:
0.255 kg
