Description

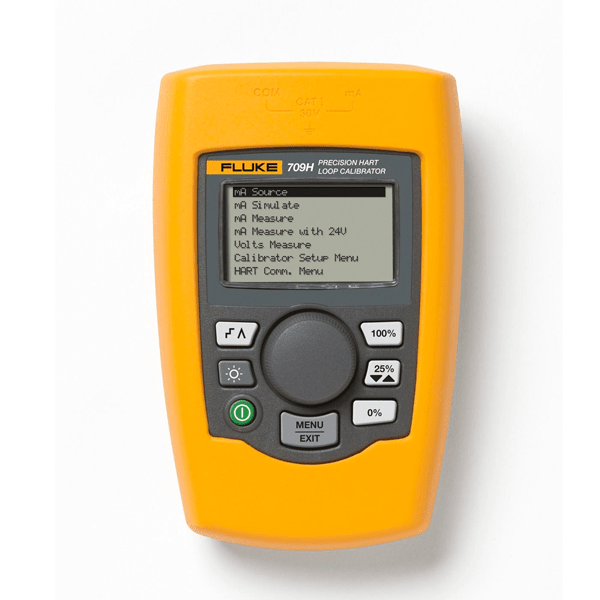

The Fluke 709H loop calibrators are designed to save time and produce high-quality results. These calibrators are built around a user friendly interface with a Quick-Set rotary encoder knob. This tool reduces the time it takes to measure, or source, current and power up a loop. The protective holster easily fi ts into a technician's hand and the large backlit display is easy to read, even in dark, cramped worked areas.

Data logged mA loop measurements and HART data can be recorded from a particular transmitter for troubleshooting and loop tuning. The data log feature offers selectable capture with recording intervals of 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions. Each data sample contains the 709H mA measurement, all four process variables, and the standard status conditions.

Features:

  • Best-in-class accuracy at 0.01% reading
  • Compact rugged design
  • Intuitive user interface with Quick-Set knob for fast setup, easy use
  • 24 V DC loop power with mA measure mode (-25% to 125%)
  • Resolution of 1 μA on mA ranges and 1 mV on voltages ranges
  • Built in selectable 250 Ω resistor for HART communications
  • Simple two wire connection for all measurements
  • Auto shutdown to conserve battery life
  • Variable step and ramp time in seconds
  • Valve test (source and simulate defined mA values with % keys
Product Specifications

GENERAL

Accuracy:
0.01% +/- 2 counts all ranges (@23° +/- 5°C)
Brand:
Fluke
Dimensions:
150x90x30 mm
Display:
128x64 pixels, LCD Graphic w/backlight, .34” high digits
EMC:
EN61326 Annex A (Portable Instruments)
Functions:
mA source, mA simulate, mA read, mA read/loop power, and volts read
Model:
709H
Operating Temperature Range:
- 10 °C to 55 °C
Power:
6 AAA alkaline
Ranges:
mA (0 to 24mA) and Volts (0 to 30VDC)
Resolution:
1uA on mA ranges and 1mV on voltage range
Weight:
0.3 kg
