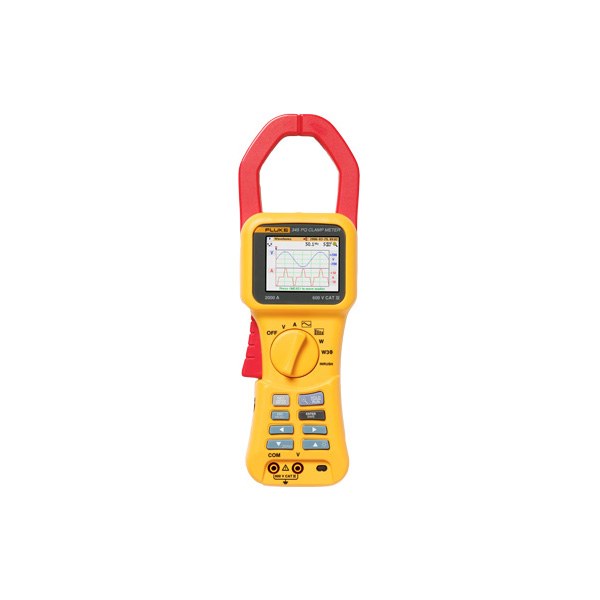

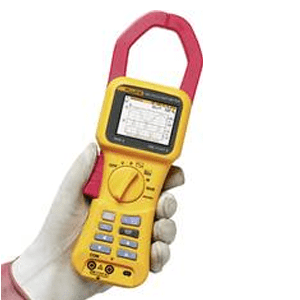

Fluke 345 - Power Quality Clamp Meter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Fluke 345-Power Quality Clamp Meter is a true RMS auto and manual multimeter used for measuring several parameters. It can be used for measuring voltage, current, frequency, power factor, harmonics, kilowatt power usage and for industrial testing applications. Fluke 345 - Power Quality Clamp Meter can measure current without touching or disrupting the circuit. This power quality clamp meter can be used for a single or three phase balanced power sources. This temperature indicator measures accurate reading for both linear and non-linear loads.

Features:

  • 1.5 V Alkaline AA MN 1500 or IEC LR6x6 Battery
  • Battery life greater tahn 10 hours (full backlight), greater than 12 hours (reduced backlight)
  • Weight 0.82 kg, Size 300 mmx98 mmx52 mm
  • Digital output USB interface to a PC
  • LCD 320x240 pixels with 2 level backlight
  • Measurement range 0 - 2000 A DC or 1400 AC rms
  • Accurate measurements with +/-3 degrees
  • Operating temperature 0 DegC to 50 DegC
  • Safety standards IEC 61010-1 600 V CAT IV, 1000V CAT II

Benefits:

  • Highly effective and reliable
  • Safe
  • Accurate
Product Specifications

GENERAL

Battery Life:
>10 hours (backlight on full), >12 hours (backlight reduced)
Brand:
Fluke
Digital output:
USB interface to a PC
Display:
Color transmissive LCD 320x240 pixels (70 mm diagonal) with 2 level backlight
Inrush current function:
All measurements DC and 15 Hz to 1 kHz
Jaw capacity:
58 mm diameter
Jaw Opening:
60 mm
Measuring Range:
0 – 2000 A DC or 1400 AC rms
Memory:
Up to 50 screen shots and over 150,000 individual measurement values
Model:
345
Operating temperature:
0 °C to 50 °C
Power Supply:
1.5 V Alkaline AA MN 1500 or IEC LR6x6 Battery
Protection:
IP
Ranges:
40, 400 and 2000 A
Safety:
IEC 61010-1 600 V CAT IV, 1000V CAT III (maximum input phase-phase 825V rms) double or reinforced insulation, pollution degree 2
Size:
300 mmx98 mmx52 mm
Weight:
0.82 kg
