Buy Fluke 317 - 600 A True RMS AC/DC Digital Clamp Meter with Backlight Online
Fluke

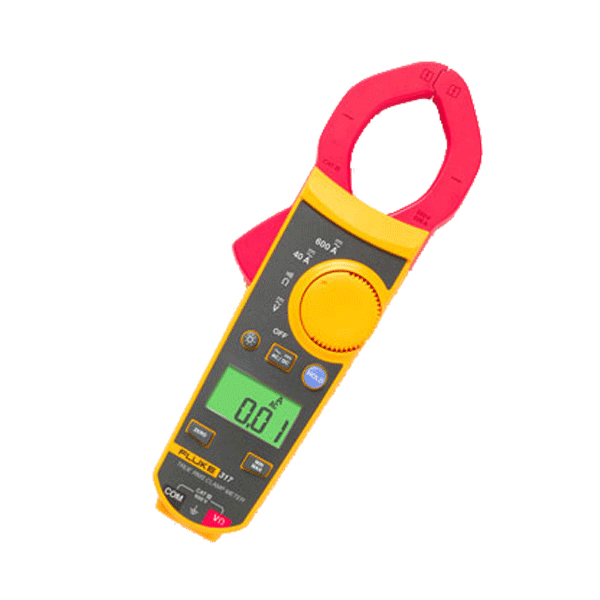

Fluke 317 - 600 A True RMS AC/DC Digital Clamp Meter with Backlight


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Fluke

Fluke 317 - 600 A True RMS AC/DC Digital Clamp Meter with Backlight

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 3-4 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

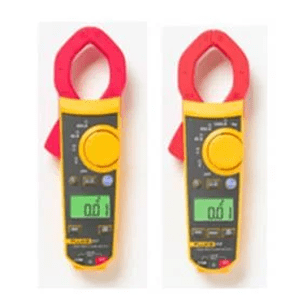

The Fluke 317 and 319 are designed with ergonomic concepts, shaped to fit your hand and to access tight spots easily. These small and rugged clamp meters are ideally suited for current measurements up to 1000 A in tight cable compartments. The Fluke 317and 319 also offer AC/DC current measurements and have a higher resolution for loads below 40 A. In addition to a compact package with a strong feature set, the Fluke 319 also equips with In-rush current and Frequency functions for testing motors, lighting, etc.

Features:

  • Special 40A high accuracy AC/DC high measure, 1.6% accuracy, 0.01A resolution
  • Small body and jaws fit perfectly in your hand and into tight places
  • Large, backlit display is easy-to-see in less than ideal conditions
  • In-rush current function for measuring starting current for motors, lighting, etc.
  • Measuring current Frequency
  • Resolution up to 0.01A and 0.1 V
  • Measures AC/DC current to 1000 A
  • Measures AC/DC volts to 600 V
  • Resistance measurement to 4000 ohm
  • Continuity for quick checking of shorts
  • Auto-shut-off maximizes battery life so the meter works when you need it
  • Display hold function
Product Specifications

GENERAL

AC Current Range:
40.00 A, 600.0 A
AC Current Resolution:
0.01 A, 0.1 A
AC Voltage Range:
600 V
AC Voltage Resolution:
0.1 V
Brand:
Fluke
Clamp Opening:
18 mm
Clamp Opening Size:
1.45 inch
DC Current Range:
40.00 A, 600.0 A
DC Current Resolution:
0.01 A, 0.1 A
DC Voltage Range:
600 V
DC Voltage Resolution:
0.1 V
Digital Display:
6000 count
Dimensions:
6.39x2.29x1.20 inch
Jaw Diameter:
1.45 inch
Model:
317
Power Source:
3 AAA IEC LR03 batteries
Resistance Range:
400.0 ohm, 4000 ohm
Resistance Resolution:
0.1 ohm, 1 ohm
Standards:
EN/IEC 61010 1, IEC 61010 2 032
Weight:
384 grams
