Description

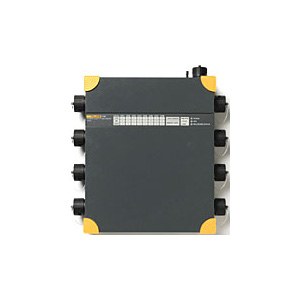

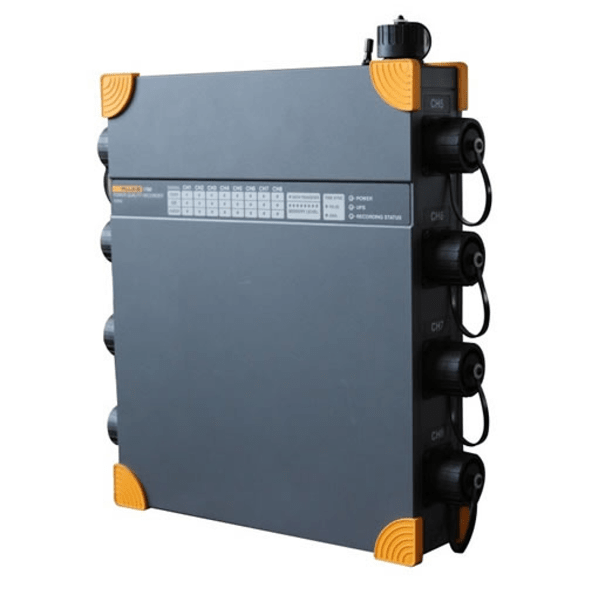

The Fluke 1760 Three Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems, in medium and low-voltage networks, the Fluke 1760 provides the flexibility to customize thresholds, algorithms, and measurement selections. It has 8 input channels (4 currents/4 voltages or 8 voltages), and captures the most comprehensive details on user selectable parameters.

Features:

  • GPS time synchronization: Correlate data with events or datasets from other instruments with precision
  • Uninterrupted power supply (40 minutes): Never miss important events-even record the beginning and end of interruptions and outages
  • 10 MHz, 6000 Vpk waveform capture: Get a detailed picture of even the shortest event
  • 2 GB data memory: Enables detailed, simultaneous recording of numerous power parameters for long periods of time
  • Includes Comprehensive software: Provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
Product Specifications

GENERAL

Battery pack:
NIMH, 7.2 V, 2.7 Ah
Brand:
Fluke
Continuous recording of:
Voltage-Yes, Current-Yes, Power P, Q, S-Yes, Power factor-Yes, kWh-Yes, Flicker-Yes, Unbalance-Yes, Frequency-Yes, Voltage and current harmonics to the 50th/ Interharmonics-Yes, THD-Yes, Mains signaling-Yes, Triggered recordings-Yes,
Fast transient analysis up to 10 MHz:
Yes
Housing:
Fully insulated robust plastic housing
Interfaces:
Ethernet (100 MB/s), RS-232, external modem via RS-232
Memory:
2 GB Flash memory
Model:
1760TR Basic
Online mode:
Yes (Oscilloscope, transients and events)
Operating temperature:
0 °C to 35°C
Power quality statistics according to EN50160:
Yes
Power Supply:
83 V to 264 V, 45 to 65 Hz
Safety:
600V CAT IV/1000V CAT III
Size:
325 mmx300 mmx65 mm
Voltage event list:
Yes (dips, swells and interruptions)
Weight:
4.9 kg
