Description

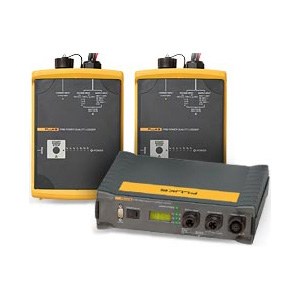

Compact, rugged and reliable, the Fluke 1740 Series three-phase power quality loggers are everyday instruments for technicians who troubleshoot and analyze power distribution systems. Capable of simultaneously logging up to 500 parameters for up to 85 days and capturing events, the Fluke 1740 Series helps uncover intermittent and hard-to find power quality issues. There are three models to choose from to meet your basic or advanced power logging needs.

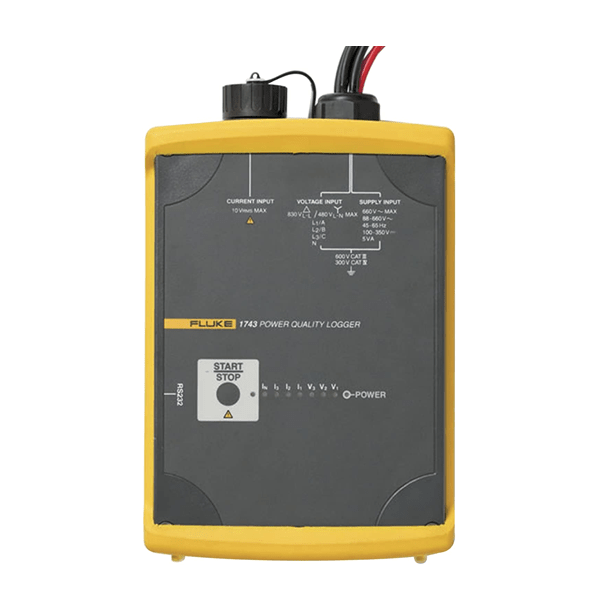

Fluke 1743: IP65 waterproof monitor for logging the most common power parameters including V, A, W, VA, VAR, PF, energy, fl icker, voltage events and THD.

Features:

  • Plug and play: Set up in minutes with automatic current probe detection and powering

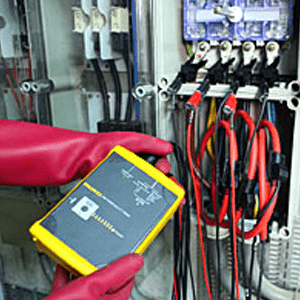

  • Installs inside the cabinet: Compact, fully-insulated housing and accessories fit easily in tight spaces next to live power
  • Monitors power for the long-term: Data can be downloaded during recording without interruption
  • Measure voltage with premium accuracy: IEC61000-4-30 Class-A compliant voltage accuracy (0.1%)
  • Quickly validate quality of power: Assess power quality according to EN50160 power quality standard with statistical overview
Product Specifications

GENERAL

Brand:
Fluke
Display:
LED
Dust/water resistance:
IP 65 waterproof
EN 50160:
Yes
Housing:
Fully insulated housing and accessories
Interface:
RS 232, 9600 ... 115 000 Baud, automatic Baud rate selection, 3-wire communication
Measurement of common power parameters:
Yes (V, A, W, VA, VAR, PF, energy, flicker, voltage events (dips, swells, interruptions), and THD)
Memory:
8 MB
Model:
1743
Operating temperature:
0 °C to 35°C
Power Supply:
88 V-660 V AC
Safety:
IEC/EN 61010-1 600 V CAT III, 300 V CAT IV, pollution degree 2, double insulation
Size:
170 mmx125 mmx55 mm
UPS ride through:
3s
Weight:
2 kg
