Description

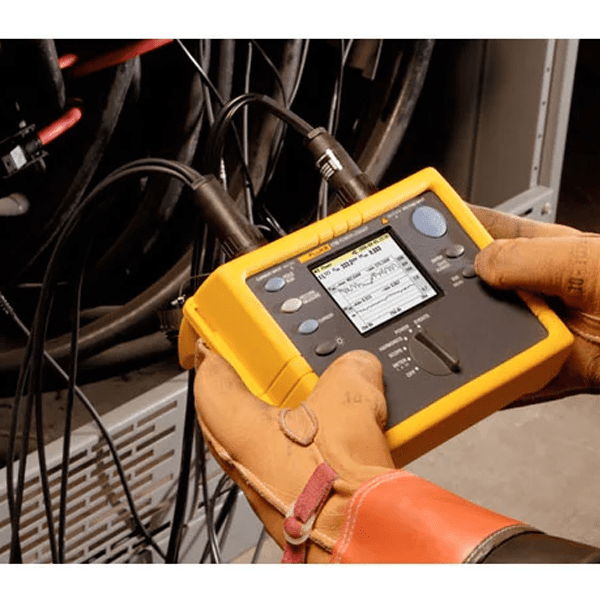

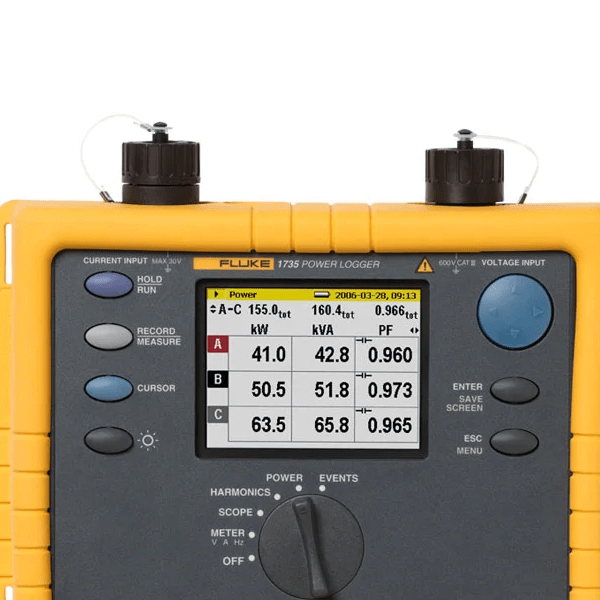

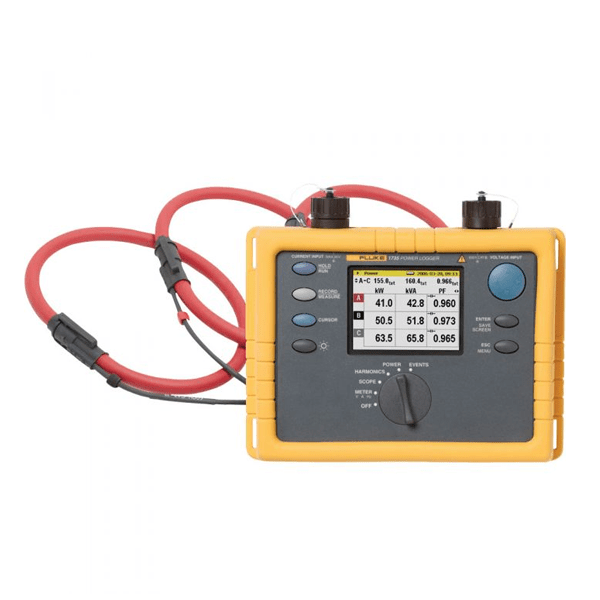

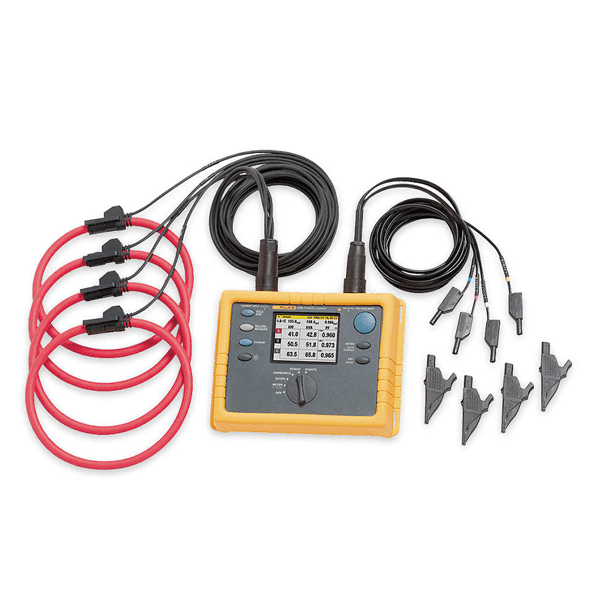

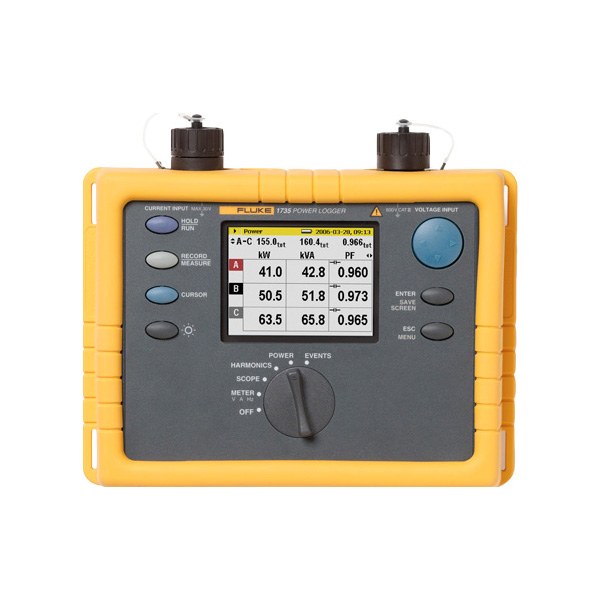

The Fluke 1735 Power Logger is the ideal tool for electricians and maintenance technicians for conducting energy studies and basic power quality logging. The 1735 is easy to set up with its color display and four included new thinner flexible current probes.

Features:

  • Record power and associated parameters for up to 45 days
  • Monitor maximum power demand over
  • user-defined averaging periods
  • Prove the benefi t of efficiency improvements with energy consumption tests
  • Measure harmonic distortion caused by electronic loads
  • Improve reliability by capturing voltage dips and swells from load switching
  • Confirm instrument setup easily with color display of waveforms and trends
Product Specifications

GENERAL

Amps rms:
Flexi set measurement range: 15 A/150 A/3000 A rms (at sine) Current clamp measurement range: 1 A/10 A
Battery Life:
Typical > 16 hours without backlight and > 6 hours with backlight high
Brand:
Fluke
Display:
VGA Graphic Color transmissive displays 320x240 pixels with additional background lighting and adjustable contrast, text and graphics in color
Energy Measurement:
Measuring range: see V-rms and A-rms measurement rangeso
Events:
Detection of voltage dips, voltage swells and voltage interruptions with a 10 ms resolution and measuring error of the half period sine wave of rms.
Frequency:
Measurement range: 46 Hz to 54 Hz and 56 Hz to 64 Hz
Harmonics and THD:
To 50th harmonic (< 50 % of nom)
Housing:
IP
Interface:
USB with Mini USB B socket. Firmware updates are possible with the USB interface
Line frequency:
50 Hz or 60 Hz, user-selectable, with automatic synchronization
Memory:
4 MB Flash memory, 3.5 MB for measuring data
Model:
1735
Operating temperature:
0°C to +40°C
Power Factor:
0.000 to 1.000
Power measurement:
Measuring range: see V-rms and A-rms measurement ranges
Power Supply:
NiMH battery-pack, with AC adapter (15 V to 20 V/0.8 A)
Sample rate:
10.24 kHz
Size:
240 mmx180 mmx110 mm
Weight:
1.7 kg
