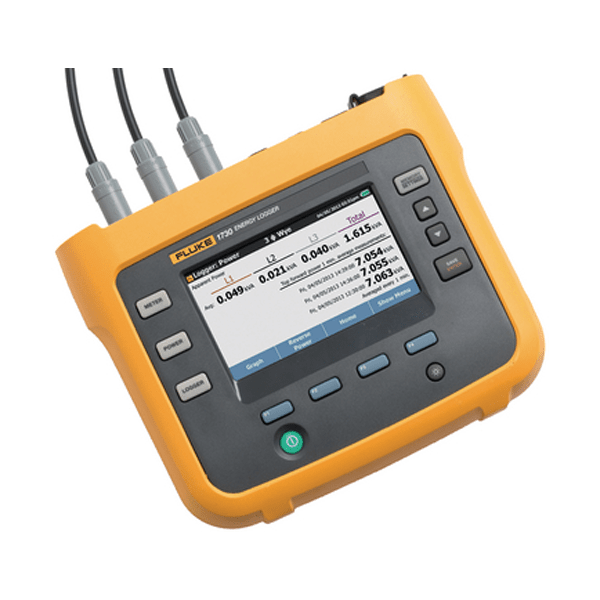

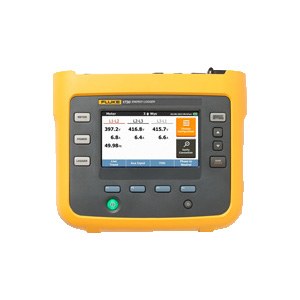

Fluke 1730 - Three Phase Electrical Energy Logger


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Fluke

Fluke 1730 - Three Phase Electrical Energy Logger

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Key measurements: voltage, current, power, power factor and associated values enable energy saving strategies to be implemented.
  • Bright, color touch screen: perform convenient in-the-fi eld analysis and data checks with full graphical display.
  • All new, Energy Analyze application software: download, analyze and automated reporting for a complete picture of energy saving potential.
  • Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on the-go analysis. More than 20 separate logging sessions can be stored on the instrument.
  • Optimized user interface: quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verifi cation function indicates correct connections have been made, reducing user uncertainty.
  • Complete 'in-the-field' setup through the front panel: no need to return to the workshop for download and setup or to take a computer to the electrical panel.
  • Wide range power: power instrument directly from the measured circuit eliminating the need to fi nd a power outlet while allowing the instrument to be secured safely inside electrical panels.
  • Two USB ports: one for PC connection and another for fast, simple download to standard USB thumb drives, or other USB devices.
  • Compact size: designed to fit in tight spaces and panels.

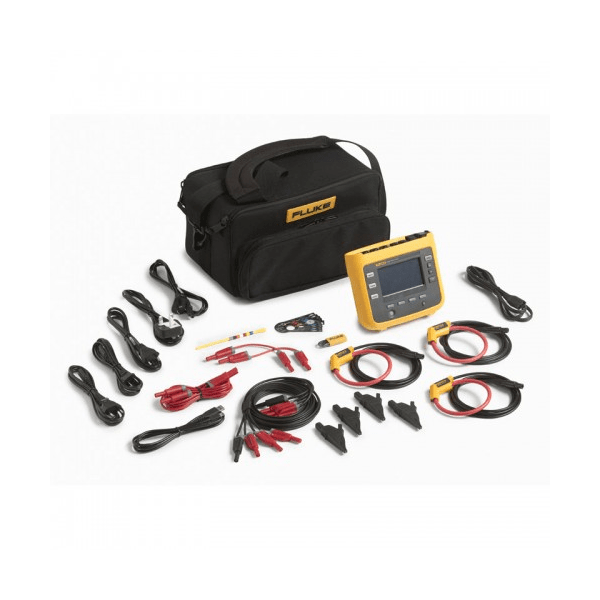

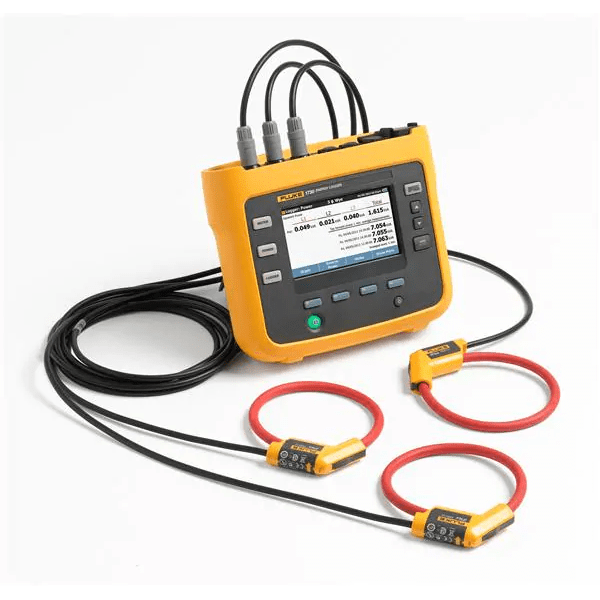

  • Optimized measurement accessories: flat voltage cable and thin flexible current probes ensure easy installation even in tight spaces.
  • Security: safeguard against theft with a Kensington lock.
Product Specifications

GENERAL

Brand:
Fluke
Circuit types:
1-?, 1-? IT, Split phase, 3-? delta, 3-? wye, 3-? wye IT, 3-? wye balanced, 3-?, Aron/Blondel (2-element delta), 3-? delta open leg, Currents only (load studies)
Current Inputs:
3 phases
Model:
1730
Parameter:
Active Power, Apparent Power, Reactive Power, Voltage Min/Max, Current Min /Max, Cos?, PF, THD on Current and Voltage
Voltage Inputs:
4( 3 phases and Neutral)
