Buy Fluke 1625 2 - Earth Ground Tester GEO Online

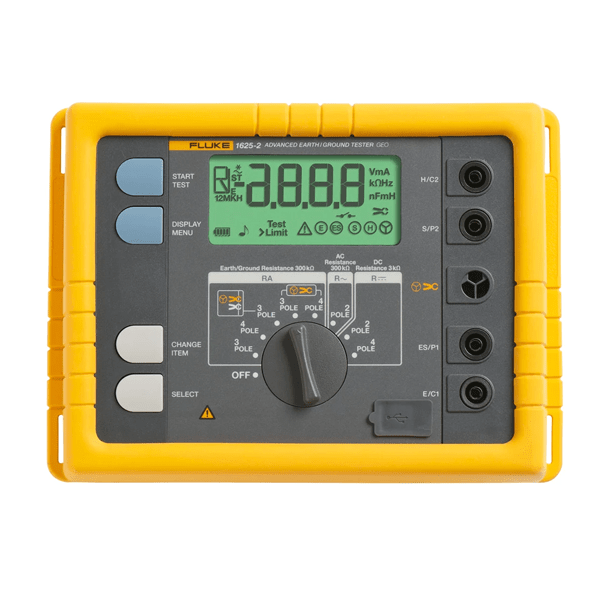

Fluke 1625 2 - Earth Ground Tester GEO


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Fluke 1625 2 - Earth Ground Tester GEO

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Automatic Frequency Control (AFC) identifies existing interference and chooses a measurement frequency to minimize its effect, providing more accurate earth ground value

R measurement-calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault to earth ground would see

Adjustable limits for quicker testing

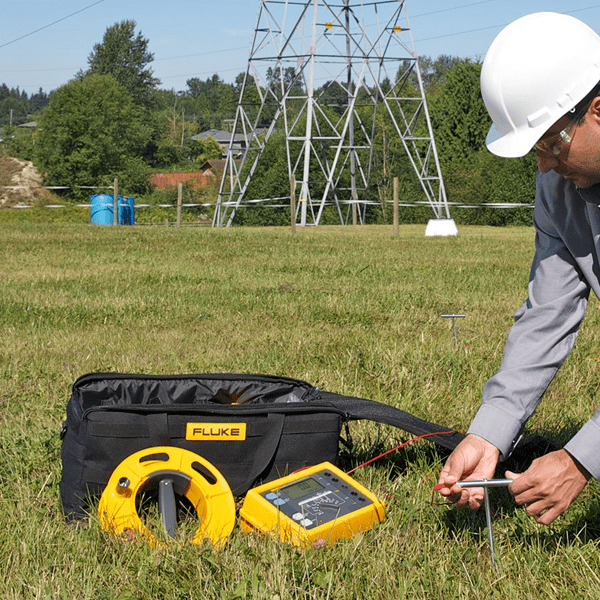

Earth ground resistance and soil resistivity should be measured when:

  • Designing earth ground systems
  • Installing new ground system and electrical equipment
  • Periodically testing ground and lightning protection systems
  • Installing large electrical equipment such as transformers, switchgears, machines, etc.
Product Specifications

GENERAL

2 and 4 pole resistance measurement DC:
Yes
2 Pole resistance measurement AC:
Yes
3 and 4 pole Fall of Potential, earth resistance loop testing:
Yes
4 Pole soil resistivity testing:
Yes
Automatic frequency control:
Yes (AFC) (94 – 128 Hz)
Battery Type:
6xAA alkaline cells
Brand:
Fluke
Continuity with buzzer:
Yes
Dust/water resistance:
IP56
Earth impedance measurement at 55 Hz:
Yes (128 Hz)
Measuring voltage switchable:
Yes (20/48V)
Model:
1625-2
Programmable limits, settings:
Yes
Safety rating:
CAT II 300 V
Selective testing, no disconnection of ground conductor:
Yes (1 clamp)
Size:
250x133x187 mm
Stakeless testing, quick ground loop testing:
Yes (2 clamps)
Weight:
1.1 kg (including batteries)
