Buy Fluke 1550C - Insulation Tester Online

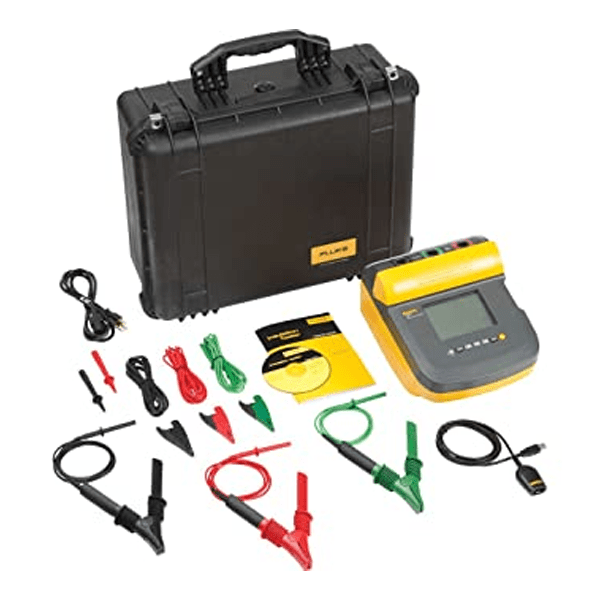

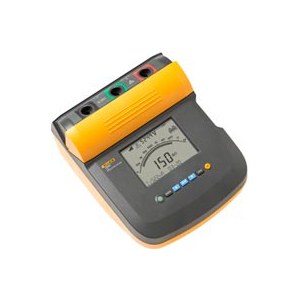

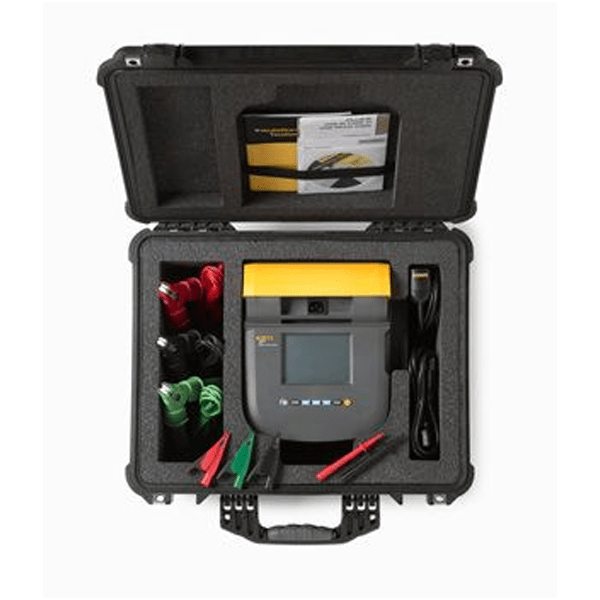

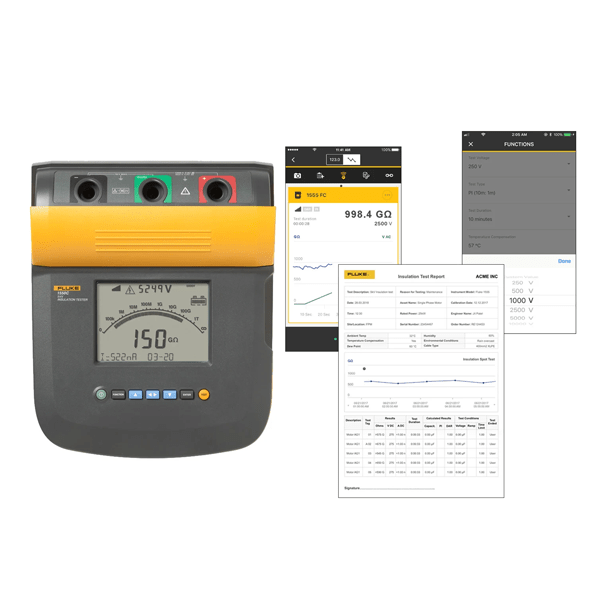

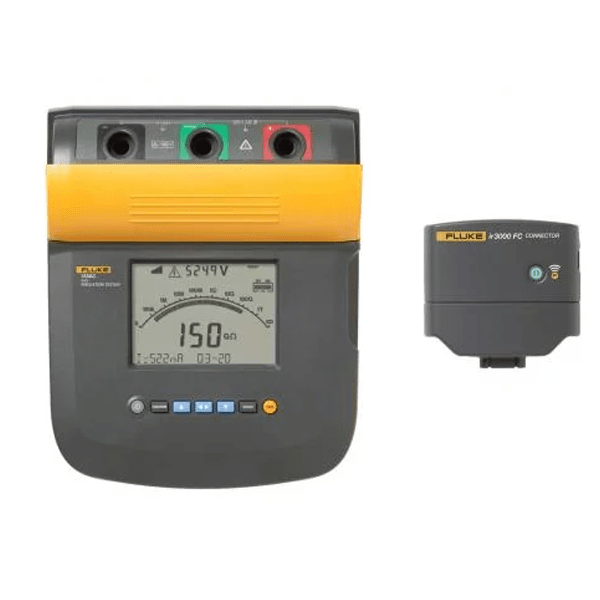

Fluke 1550C - Insulation Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Fluke - Insulation Tester automatically calculates Polarisation index and absorption ratio, saving both time and money for the user. Insulation Tester has a built-in compare (pass/fail) function to make recurrent tests and compare results. When the voltage drops under 30 V, the Fluke - Insulation Tester circuitprevents insulation testing. Auto Discharge of the voltage capacity is present in the Insulation Tester for protection. Environmental friendly as the switch turns off when not in use. The Insulation Tester has a clear digital screen that accurately displays the values. There is a rotator to select the required voltage. The remote operation of the Fluke - Insulation Tester allows users to get results without visiting hazardous locations. Previous result data are saved within the Insulation Tester, enabling the user to recheck the data whenever needed. The values provided on the digital screen are easy to read and understand. There are 99 different locations within the memory of the Insulation Tester, which can be labelled for organised structure. The Insulation Tester can calculate the voltage of various items, such as testing a wide range of high voltage equipment, including switchgear, motors, generators and cables.

Product Specifications:

  • Brand: Fluke
  • Product: Insulation Tester
  • Weight: 3.7 kg (8.2 lb)
  • Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
  • Battery type: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
  • Minimum operating temperature: -20°C
  • Maximum operating temperature: 50°C
  • Resistance measurements: upto 2 TR

Key features:

  • Clear digital display
  • Understandable data display
  • Memory storage
  • Auto switch-off
  • Tester protection
  • Operation via remote
Product Specifications

GENERAL

Auto Discharge:
Yes
Battery:
Rechargeable
Brand:
Fluke
Capacitance:
Yes
Display:
Digital LCD/Analog Bar Graph
Estimated Number of Insulation resistance Tests:
1000 @ 5000 V
Hold/Lock:
Yes
Insulation Resistance Test Range:
200 K-1 T
Memory:
99 Locations
Model:
1550C
Polarization Index/Dielectric Absorption Radio:
Yes
Software:
Fluke View Forms Basic
Test voltages:
250V, 500V, 1000V, 2500V, 5000V
Time Ramp Test:
Yes (Breakdown)
Voltage>30V Warning:
Yes
