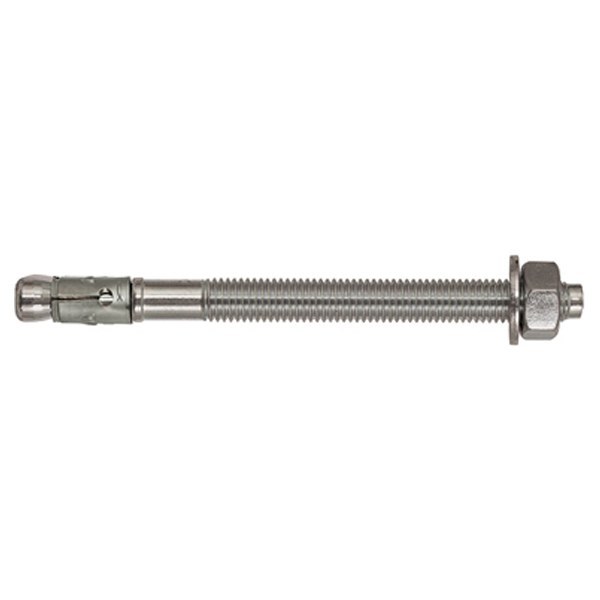

Fischer 501403 - 10x10 mm Stainless Steel Bolt Anchor FAZ II A4


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Fischer 501403 - 10x10 mm Stainless Steel Bolt Anchor FAZ II A4

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Anchor bolt for push-through installation.
  • When the hexagonal nut is tightened, the tapered bolt is pulled into the expansion clip and expands it against the drill hole wall.
  • Version FAZ II A4 made of stainless steel of the corrosionresistance class III e.g. A4 for outdoor applications and for damp rooms. FAZ II C for applications in aggressive atmospheres according to corrosion resistance class IV, e.g. 1.4529.
  • FAZ-GS with large pre-assembled washer for fixings in oblong holes.

Advantages:

  • Optimised expansion clip ensures uniform load distribution for high permissible loads and small edge distances and axial spacings with structural elements, as well as secure expansion, even in cracked concrete.
  • Installation-friendly, since only a few turns are necessary to apply the torque.
Product Specifications

GENERAL

Anchor length:
95 mm
Anchoring depth:
60 mm
Brand:
Fischer
Drill Diameter:
10 mm
Manufacturer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Maximum fixture thickness:
10 mm
Minimum drill hole depth for through fixings:
85 mm
Packer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Product No:
501403
Spindle Thread:
M 10 x 24
Type:
FAZ II A4
Width across nut:
17 mm
