Buy Fischer 097071 - FHB II A L M 20x210 mm Performance Optimised Highbond Anchor Online

Fischer 097071 - FHB II A L M 20x210 mm Performance Optimised Highbond Anchor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Fischer 097071 - FHB II A L M 20x210 mm Performance Optimised Highbond Anchor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

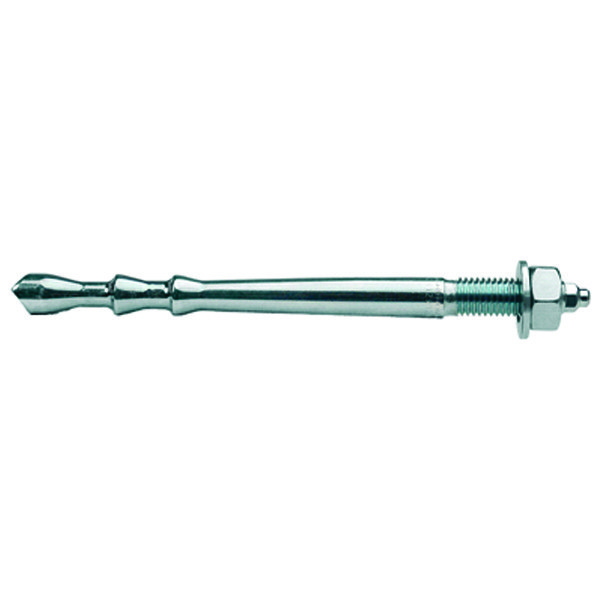

  • The bonded anchor suitable for cracked concrete consists of the anchor rod FHB II-A L (long version) or FHB II-A S (short version) and resin capsule FHB II-P, FHB II-PF or Injection mortar FIS HB.
  • The FHB II-PF capsules allow quickest curing e.g. 2 min > 20°.
  • The capsules FHB II-PF contains quick-setting vinyl ester resin.
  • The FIS HB injection mortar is a high-strength 2-component vinyl ester mortar.
  • When using the Injection mortar FIS HB 345 S a special application gun is needed (see pages 114/115). By using the application gun the two components are mixed and activated in the static mixer.
  • Partially used cartridges can be reused, simply by changing the static mixer.
  • The mortar bonds the entire surface of the anchor rod to the wall of the drilled hole and largely seals the hole.
  • Anchor rod FHB II-A A4 made of stainless steel of the corrosion resistance class III e.g. A4 for outdoor use and in damp conditions.Highly corrosion-resistant steel of the corrosion resistance class IV e.g. 1.4529 for applications in aggressive atmospheres (e.g. tunnels, swimming baths).
  • Flexible system as both injection cartridge and resin capsule can be used.
  • Suitable for use in cracked tensile zone guarantees highest safety.
  • Low-expansion force allows cost-effi cient fixing with small edge distances and spacings.
  • Ergonomic application gun guarantees fast and easy installation.
  • Quick installation by hand without a setting tool reduces the work involved.
Product Specifications

GENERAL

Anchoring depth:
210 mm
Brand:
Fischer
Drill hole depth:
235 mm
Drill hole diameter:
25 mm
Length:
50 mm
Manufacturer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Packer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Product No:
097071
Spindle Thread:
M 20
Type:
FHB II-A L M
Width Access nut:
30 mm
