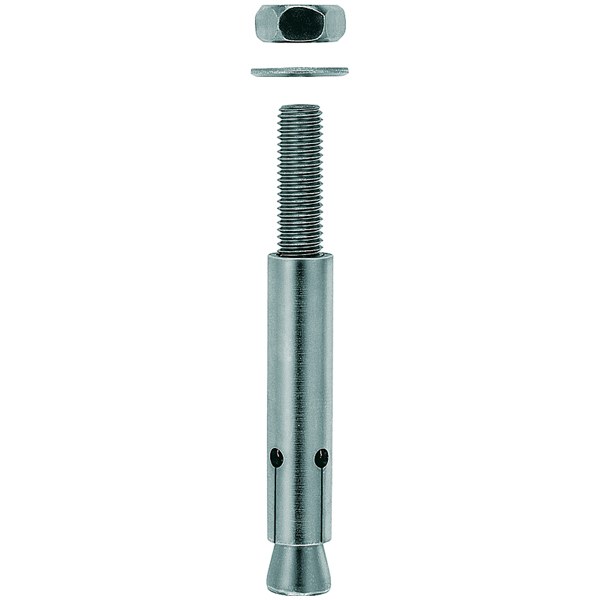

Fischer 060725 - 22x125 mm Zinc Plated Steel Zykon Bolt Anchor FZA


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Fischer 060725 - 22x125 mm Zinc Plated Steel Zykon Bolt Anchor FZA

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Undercut anchor for pre-positioned (FZA bolt version and internally-threaded anchor FZA-I) and push-through installation (FZA-D bolt version).
  • A cylindrical conical hole with an undercut is produced with the drill bit FZUB in one work process.
  • When setting the anchor, the anchor sleeve is driven over the cone with a hammer (or setting tool) and fills the undercut hole with a positive fit.
  • Stainless steel version of the corrosion resistance class III, e.g. A4 for outdoor use and in damp conditions. Highly corrosion-resistant steel of the corrosion resistance clas IV, e.g. 1.4529 for applications in aggressive atmospheres.

Advantages:

  • Positive fit in the undercut gives additional safety.
  • Virtually expansion-free operation allows cost-efficient fixing with very small edge distances and axial spacings.
  • Single-step drilling process simultaneously produces the undercut, saving installation time.
  • Simple visual control of the green ring mark ensures 100% function.
  • Immediate load-bearing capability avoids installation interruptions (no interruption for resin curing times, unlike chemical anchors).
  • Anchor version with internal thread for high flexibility by using threaded rods or screws of different lengths and type.
Product Specifications

GENERAL

Anchorage depth:
125 mm
Applications:
Steel constructions, Guard rails, Consoles, Ladders, Cable conduits, Machines, Staircases, Gates, Facades
Brand:
Fischer
Drill Diameter:
22 mm
Manufacturer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Maximum usable length:
60 mm
Packer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Product No:
060725
Spindle Thread:
M 16
Type:
FZA
Washer(outer diameter x thickness):
30 x 3 mm
Width across nut:
24 mm
