Buy Fischer 044117 - 6x90 mm Zinc Plated Steel Nail Anchor with Nail Head Online

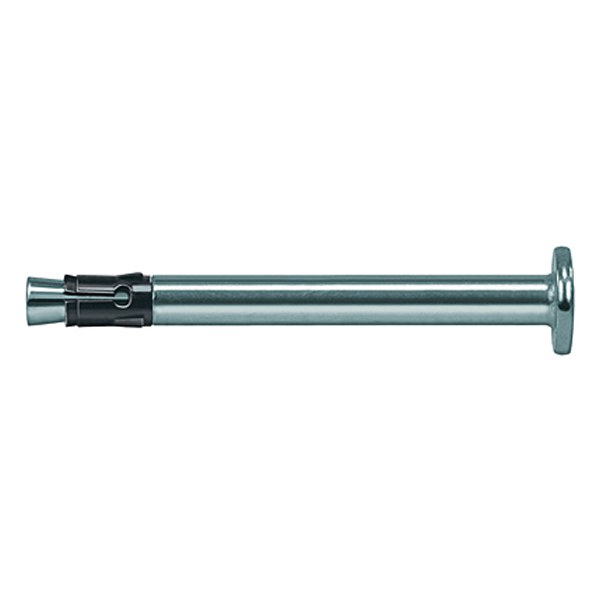

Fischer 044117 - 6x90 mm Zinc Plated Steel Nail Anchor with Nail Head (8 Pieces)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 8 Pieces
OR
Reach Us At +91-9243011081

Fischer 044117 - 6x90 mm Zinc Plated Steel Nail Anchor with Nail Head (8 Pieces)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The FNA II nail anchor combines the advantages of the active principle of a bolt anchor with those of the simple hammerset installation, no tightening torque for expansion of the anchor.
  • The installed FNA II nail anchor expands automatically under load, pulls the cone into the expansion clip and expands against the hole wall.
  • The FNA II is approved for redundant multiple fastening, also in the cracked tensile zone.
  • The FNA II is used to attach suspended ceilings, pipelines, cable ducts, wall panels, windows, fire protection boards, etc

Advantages:

  • Very easy to set: Drill, hammer in - done!
  • Little hammering force: 2-4 hammer blows and the FNA II is set
  • Smallest anchorage depth of only 25 mm reduces drilling time, saving time and reducing reinforcement hits.
  • Highest tensile loads up to 1.6 kN permitted.
  • Small axial spacings and edge distances for applications even with small component dimensions.
  • For component thicknesses from 8 cm.
  • Alternating loads tested up to 7 million cycles at reduced load.
  • First ceiling anchor with European Technical Approval in lowstrength concrete
Product Specifications

GENERAL

Anchor length:
85 mm
Brand:
Fischer
Drill hole diameter:
6 mm
Head Diameter:
13 mm
Manufacturer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Maximum fixture thickness:
50 mm
Minimum drill hole depth for through fixings:
90 mm
Packer Details:
Gangaur Creations, 4 Readymade Complex, Pardesipura, Indore 452011
Product No:
044117
Type:
FNA II 6 x 30/50
