Area of Application:
To connect a service line to the main line after a tee has been installed
IS Specifications:
As per IS: 7834
Manufacturer Details:
Regd. Office & Customer care Executive :26-27 Mumbai-pune road, pimpri, pune-411018 india
Material & Type:
Rigid PVC Moulded
Packer Details:
Regd. Office & Customer care Executive :26-27 Mumbai-pune road, pimpri, pune-411018 india
Product:

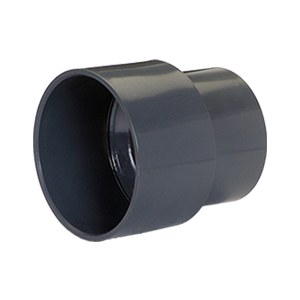

Single Stage Reducer
Product Number:
1112925999100
Socket Bottom Internal Diameter:
20.25 mm
Socket Entrance Internal Diameter:
25.3 mm
Socket Entrance Length:
17.3 mm
Socket Entrance Wall Thickness:
3.8 mm
Spigot Portion Length:
15.6 mm
Spigot Portion Wall Thickness:
3.4 mm
Working pressure:
10 Kg/cm2
Working Pressure Class:
Class 5
