Buy Finolex 10304109 - 1.5 Sq mm, Red Flame Retardant PVC Insulated Industrial Cable Online

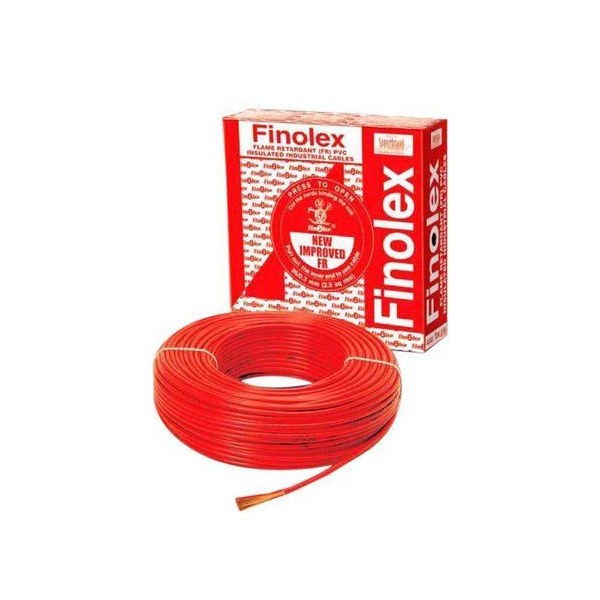

Finolex 10304109 - 1.5 Sq mm, Red Flame Retardant PVC Insulated Industrial Cable


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Finolex 10304109 - 1.5 Sq mm, Red Flame Retardant PVC Insulated Industrial Cable

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

One of the core products of Finolex Cables, Flame Retardant (FR) PVC Insulated Industrial Cables is offered in Project Packing. Each wire is manufactured using 99.97% pure, electrolytic grade, bright annealed bare copper with more than 100% conductivity for conductor. This copper is manufactured at the company's state-of-the-art plant in Goa. The wires are insulated with FR (Flame Retardant) PVC compound, specially formulated and manufactured in-house. A special grade PVC resin manufactured by the group company, Finolex Industries Limited, is used to manufacture this compound. This PVC compound has FR properties of high oxygen and temperature index. These properties help in restricting the spread of fire even at very high temperatures. This special compound also offers high insulation resistance and dielectric strength. These ISI marked wires meet the requirements of IS 694 : 2010 with latest amendments with improved fire performance for category C-1.

Product Specifications

GENERAL

Brand:
Finolex
Color:
Red
Country of Origin:
India
Current Carrying Capacity 2 Wires Single Phase:
In Conduit Trunking - 13 Amps, Unenclosed Clipped Directly to a surface or on Cable Tray - 16 Amps
IS Specification:
As per IS 3961 (Part V) - 1968
Length:
270 meters
Manufacturer Details:
Regd. Office & Customer care Executive :26-27 Mumbai-pune road, pimpri, pune-411018 india
Model:
10304109
Nominal Area of Conductor:
1.5 Sq mm
Overall Diameter:
2.72 mm
Packer Details:
Regd. Office & Customer care Executive :26-27 Mumbai-pune road, pimpri, pune-411018 india
Resistance:
13.3 Ohms (per km. at 20 degree C)
Thickness of Insulation:
0.6 mm
