Buy Finolex 10105056 - 2.5 Sq mm, 180 meters Green Flame Retardant Low Smoke PVC Insulated Industrial Cable Online

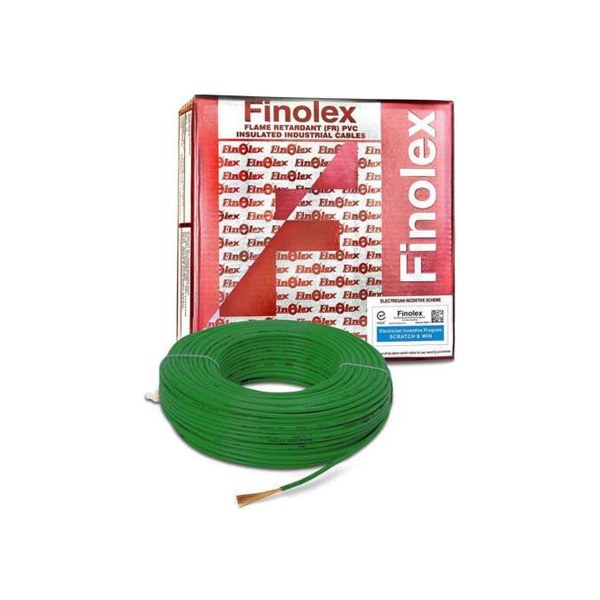

Finolex 10105056 - 2.5 Sq mm, 180 meters Green Flame Retardant Low Smoke PVC Insulated Industrial Cable


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Finolex 10105056 - 2.5 Sq mm, 180 meters Green Flame Retardant Low Smoke PVC Insulated Industrial Cable

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

FR-LSH PVC Insulated Industrial Cables are ideal for wiring of electrical control panels, industrial sheds, buildings etc., where increased fire safety is desired. During a fire these cables not only emit less smoke and toxic hydrochloric acid gas but also retard the spread of fire enabling those trapped inside buildings / sheds to escape safely.

Manufactured from bright annealed 99.97% pure bare copper conductors these cables have low conductor resistance resulting in power saving. These wires are insulated with a special grade PVC compound formulated and manufactured in-house. The insulation is far superior in terms of critical oxygen and temperature index and also in light transmission and acid gas generation.These wires conforms to IS 694:1990 and also have FIA/TAC (Fire Insurance/Tariff Advisory Committee) approval.

Product Specifications

GENERAL

Approximate Overall Diameter of Wire:
3.6 mm
Brand:
Finolex
Color:
Green
Country of Origin:
India
Current Carrying Capacity 2 Wires Single Phase:
In Conduit Trunking - 18 Amps, Unenclosed Clipped Directly to a surface or on Cable Tray - 22 Amps
IS Specification:
As per conductor Class 2 of IS : 8130/1984
Length:
180 meters
Manufacturer Details:
Regd. Office & Customer care Executive :26-27 Mumbai-pune road, pimpri, pune-411018 india
Model:
10105056
Nominal Area of Conductor:
2.5 Sq mm
Nominal Diameter of Strands:
3 mm
Number Diameter of Strands:
36 mm
Packer Details:
Regd. Office & Customer care Executive :26-27 Mumbai-pune road, pimpri, pune-411018 india
Resistance:
7.41 Ohms (per km. at 20 degree C)
Thickness of Insulation:
0.8 mm
