Buy Festo QS 1-8-8 - Push in Fitting (Pack of 10) Online

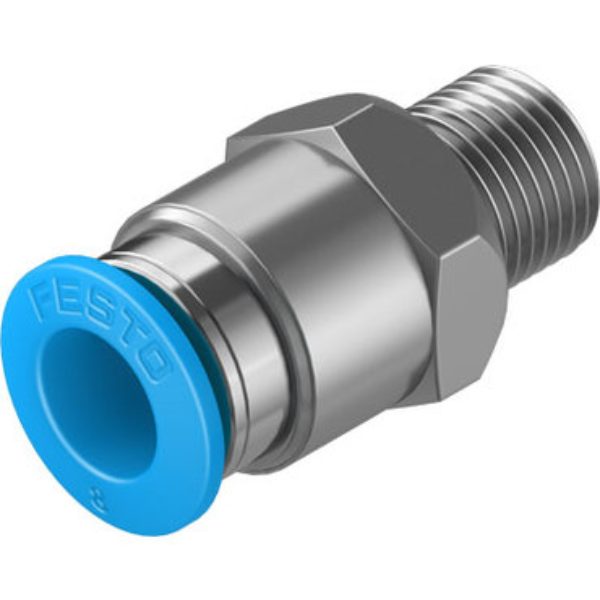

Festo QS 1-8-8 - Push in Fitting (Pack of 10)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 10 Pieces
OR
Reach Us At +91-9243011081

Festo QS 1-8-8 - Push in Fitting (Pack of 10)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Festo - Push-in Fitting comprises nickel-plated brass. This Push in Fitting isideal for pneumatic applications with a temperature range of 80 °C. In addition, the Push in Fitting adheres to industry standards.

Product Specifications:

  • Size: Standard
  • Nominal size: 6 mm
  • Type of seal on screw-in stud: Coating
  • Mounting position: optional
  • Size of pack: 10
  • Design: Push-pull principle
  • Operating pressure complete temperature range: -0.95 bar ... 6 bar
  • Temperature-dependent operating pressure: -0.95 bar ... 14 bar
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot medium: Lubricated operation possible
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • Ambient temperature: -10 °C ... 80 °C
  • Product weight:14 g
  • Pneumatic connection, port 1: Male thread R1/8
  • Pneumatic connection, port 2: For tubing outside diameter of 8 mm
  • Colour of release ring: Blue
  • Material housing: Brass Nickel-plated
  • Material release ring: POM
  • Material tubing seal: NBR
  • Material tubing clamp component: High-alloy stainless steel

Key Features:

  • Robust Construction
  • Durable
Product Specifications

GENERAL

Ambient Temperature:
10 to 80 degree C
Brand:
Festo
Country of Origin:
India
Hose Clamping Segment Material:
High-Alloyed Stainless Steels
Housing Material:
Brass, Nickel-Plated
Information About Operating And Control Medium:
Oiled operation possible
Installation Position:
Arbitrary
Model:
QS-1-8-8
Nominal Width:
6.0 mm
Operating Pressure Complete Temperature Range Bar:
0.95 to 6
Seal Type on Stud:
Coating
Size:
Standard
Sleeve Colour:
Blue
Sleeve Material:
POM
Temperature Depending Operating Pressure Bar:
0.95 to 14
Tube Seal, Hose Seal Material:
NBR
