Buy Festo MFH 5-1-8 - Air Solenoid Valve Online

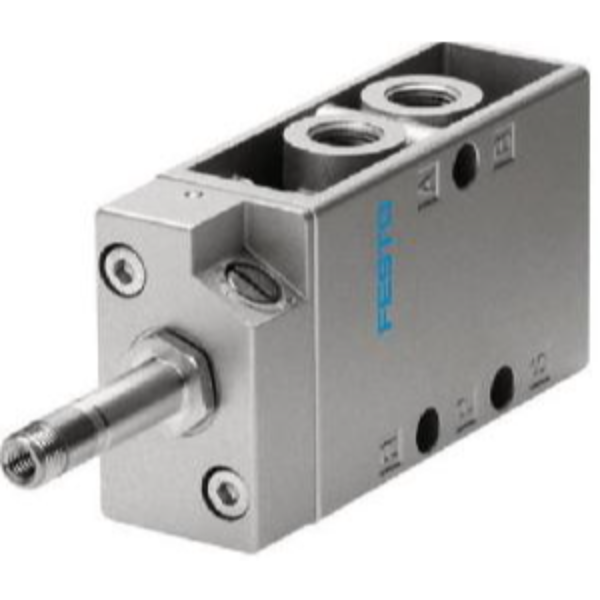

Festo MFH 5-1-8 - Air Solenoid Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Festo MFH 5-1-8 - Air Solenoid Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Festo - Air Solenoid Valves work without manual or pneumatic control of a pneumatic circuit, requiring only an electrical input (and air pressure for piloted valves), making them simple to configure and install in a wide range of applications. The Air Solenoid Valve weighs 270 grams.

Product Specifications:

  • Valve function: 5/2, monostable
  • Actuation type: Electrical
  • Width: 26 mm
  • Standard nominal flow rate: 500 l/min
  • Pneumatic working port: G1/8
  • Operating pressure: 1.8 bar ... 8 bar
  • Structural design: Plate seat
  • Corrosion resistance class (CRC): 1 Low corrosion stress
  • Storage temperature: -20 °C ... 60 °C
  • Temperature of medium : -10 °C ... 60 °C
  • Ambient temperature: -5 °C ... 40 °C
  • Product weight: 270 g
  • Electrical connection: Via F coil, to be ordered separately
  • Seals material: NBR TPE-U(PU)
  • Housing material: Die Cast Aluminum

Key Features:

  • Resistant to corrosion
  • The Solenoid Valveislightweight
Product Specifications

GENERAL

Actuation Type:
Electrical
Ambient Temperature:
5 to 40 degree C
Brand:
Festo
Country of Origin:
India
Design:
Plate Seat
Model:
MFH-5-1-8
Nominal Width:
5 mm
Operating Medium:
Compressed Air as Per ISO 8573-1:2010-7:4:4
Operating Pressure:
1.8 bar-8 bar
Operating Voltage:
Via Solenoid Coil, to be Ordered Separately
Reset Method:
Mechanical Spring
Storage Temperature:
20 to 60 degree C
Temperature of Medium:
10 to 60 degree C
Valve Function:
5-2 Monostable
Width:
26 mm
Width Dimension:
27 mm
