Buy Festo MFH-5 1-4 - Air Solenoid Valve Online

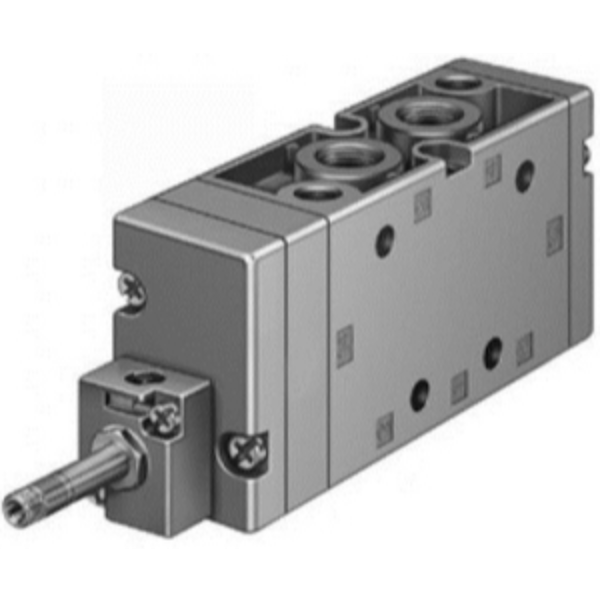

Festo MFH-5 1-4 - Air Solenoid Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Festo MFH-5 1-4 - Air Solenoid Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Festo - Air Solenoid Valve has common use in regulating cylinders, fluid power motors, and bigger industrial valves in fluid power pneumatic and hydraulic systems. Solenoid valves with an automatic controller are used in automatic irrigation sprinkler systems. This Air Solenoid Valve by Festo is ROHS compliant and built as per industry standards.

Product Specifications:

  • Valve function: 5/2, monostable
  • Actuation Type: Electrical
  • Width: 30.5 mm
  • Standard nominal flow rate: 1000 l/min
  • Pneumatic working port: 1/4 NPT
  • Structural design: Plate seat
  • Reset method: Mechanical spring
  • Nominal width: 7 mm
  • Width dimension: 32 mm
  • Exhaust air function: With flow control option
  • Manual override: Detenting
  • Type of control: Pilot-controlled
  • Pilot air supply port: External
  • Flow direction: Non-reversible
  • Symbol: 00991024
  • Lap: Underlap
  • Pilot pressure: MPa 0.15 MPa ... 0.8 MPa
  • Product weight: 290 g
  • Seals material: NBR TPE-U(PU)
  • Housing material: Die Cast Aluminum

Key Features:

  • Resistant to corrosion
  • The Solenoid Valveisportable
Product Specifications

GENERAL

Actuation Type:
Electrical
Ambient Temperature:
5 to 40 degree C
Brand:
Festo
Construction Width:
30.5 mm
Country of Origin:
India
Design:
Poppet Seat
Electrical Connection:
Via F Coil, to be Ordered Separately
Grid Dimension:
32 mm
Model:
MFH-5-1-4
Nominal Size:
7 mm
Operating Pressure:
2.2 bar-8 bar
Operating Voltage:
Via Solenoid Coil, to be Ordered Separately
Storage Temperature:
20 to 60 degree C
Temperature of Medium:
10 to 60 degree C
Type of Reset:
Mechanical Spring
Valve Function:
5-2 Monostable
