Buy Festo MFH 3-1-8 - Air Solenoid Valve Online

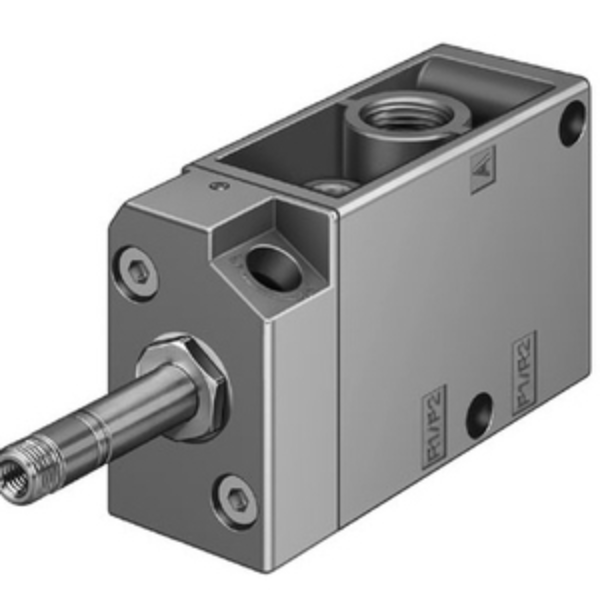

Festo MFH 3-1-8 - Air Solenoid Valve


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Festo MFH 3-1-8 - Air Solenoid Valve

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Solenoid valves are devices that control valve actuation with a solenoid. They are electromechanical control devices that help to regulate liquid or gas flow. The Festo - Air Solenoid Valve is capable of withstanding high dynamic forces. Also, the Air Solenoid Valve adheres toIP65, which ensures protection from dust, oil, and other non-corrosive materials.

Product Specifications:

  • Valve function: 3/2, closed, monostable
  • Actuation Type: Electrical
  • Width: 26 mm
  • Standard nominal flow rate: 500 l/min
  • Pneumatic working port: G1/8
  • Operating pressure: 0.15 MPa ... 0.8 MPa
  • Structural design: Plate seat
  • Reset method: Mechanical spring
  • Certification: c UL us - Recognized (OL)
  • Degree of protection: IP65
  • Nominal width: 5 mm
  • Width dimension: 27 mm
  • Exhaust air function: With flow control option
  • Type of control: Pilot-controlled
  • Flow direction: Non-reversible
  • Product weight: 240 g
  • Seals material: NBR TPE-U(PU)
  • Housing material: Die Cast Aluminium

Key Features:

  • The Air Solenoid Valve is ROHS compliant
  • The Solenoid Valveis compact
Product Specifications

GENERAL

Actuation Type:
Electrical
Ambient Temperature:
5 to 40 degree C
Brand:
Festo
Coil Characteristics:
See Solenoid Coil, to be Ordered Separately
Country of Origin:
India
Design:
Plate Seat
Electrical Connection:
Via F Coil, to be Ordered Separately
Model:
MFH-3-1-8
Nominal Width:
5 mm
Operating Medium:
Compressed Air as Per ISO 8573-1:2010-7:4:4
Operating Pressure:
1.5 bar-8 bar
Operating Voltage:
Via Solenoid Coil, to be Ordered Separately
Storage Temperature:
20 to 60 degree C
Temperature of Medium:
10 to 60 degree C
Valve Function:
3-2, Closed, Monostable
Width:
26 mm
Width Dimension:
27 mm
