Description

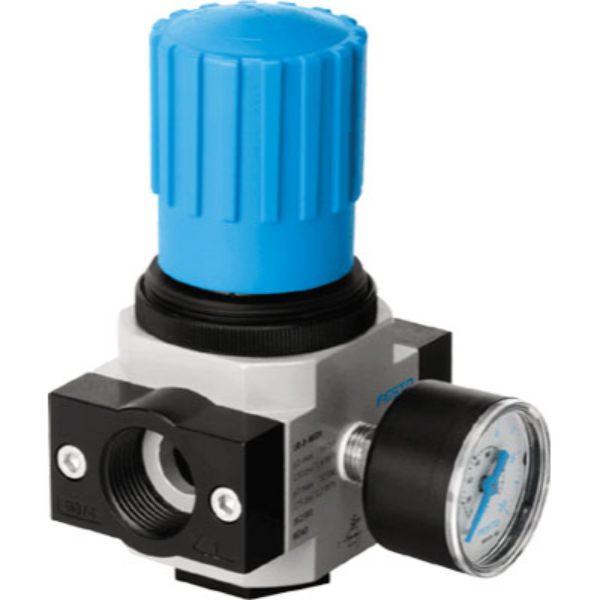

The Festo - Pressure Regulator has a blue colour knob. The Pressure Regulator belongs to the D series and complies with ROHS. The housing material of the regulator is Die-cast zinc.

Product Specifications:

  • Size: Midi
  • Series: D
  • Actuator lock: Rotary knob with detent
  • Mounting position: optional
  • Design: Directly actuated diaphragm regulator
  • Controller function: Output pressure constant Via primary pressure compensation with secondary venting
  • Pressure gauge (ANALOG) or Pressure display (DIGITAL): With pressure gauge
  • Operating pressure: 0 bar ... 16 bar
  • Pressure regulation range: 0.5 bar ... 12 bar
  • Standard nominal flow rate: 3500 l/min
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
  • Corrosion resistance class: CRC 2 - Moderate corrosion stress
  • Product weight: 720 g
  • Type of mounting: Front panel mounting In-line installation With accessories
  • Material sub-base: Die-cast zinc
  • Material seals: NBR
  • Material housing: Die-cast zinc

Key Features:

  • It has a compact size
Product Specifications

GENERAL

Actuator Lock:
Rotary Knob With Detent
Air Purity Class at Output:
Compressed Air to ISO 8573-1:2010-7:4:4 Inert Gases
Ambient Temperature:
10 to 60 degree C
Brand:
Festo
Controller Function:
Output Pressure Constant Via Primary Pressure Compensation With Secondary Venting
Country of Origin:
India
Design:
Directly Actuated Diaphragm Regulator
Maritime Classification:
See Certificate
Max Pressure Hysteresis:
0.2 bar
Model:
LR-1-2-D-MIDI
Mounting Position:
Optional
Operating Medium:
Compressed Air to ISO 8573-1:2010-7:4:4 Inert Gases
Operating Pressure:
0 bar-16 bar
Pressure Regulation Range:
0.5 bar-12 bar
Series:
D
Size:
Midi
Temperature of Medium:
10 to 60 degree C
