Description

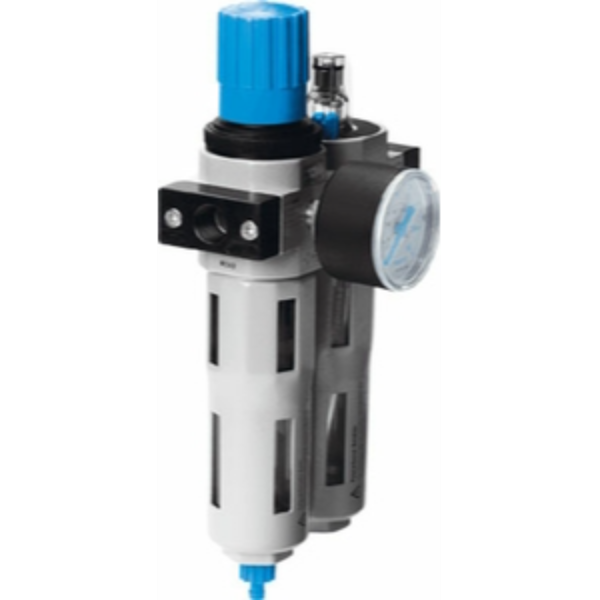

The Festo - Air Preparation Unit consists of a filter to remove airborne impurities and moisture. The Air Preparation Unit also consists of a regulator to regulate the pressure and a lubricator to put a certain amount of lubricant mist into the air stream.

Product Specifications:

  • Size: Mini
  • Series: D
  • Actuator lock: Rotary knob with detent
  • Mounting position: Vertical +/- 5°
  • Grade of filtration: 40 µm
  • Condensate drain: Manually rotating
  • Structural design: Branching module, Filter regulator with pressure gauge, Proportional standard oil mist lubricator
  • Max. condensate volume: 22 ml
  • Bowl guard: Metal bowl guard
  • Symbol: 00991503
  • Pressure gauge: with pressure gauge
  • Standard nominal flow rate: 980 l/min
  • Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • Product weight: 1000 g
  • Type of mounting: Optionally Line installation With accessories
  • Housing material: Die-cast zinc
  • Material of bowl: PC

Key Features:

  • Filters compressed air
  • Durable
Product Specifications

GENERAL

Actuator Lock:
Rotary Knob With Lock
Air Purity Class at Output:
Compressed Air as Per ISO 8573-1:2010-7:8-Inert Gas
Ambient Temperature:
10 to 60 degree C
Brand:
Festo
Condensate Drain:
Manual Rotary
Country of Origin:
India
Medium Temperature:
10 to 60 degree C
Model:
FRC-1-4-D-MINI
Mounting Type:
Line Installation With Accessories
Operating Medium:
Compressed Air as Per ISO 8573-1:2010-7:9-Inert Gas
Operating Pressure:
1-16 bar
Pressure Regulation Range:
0.5 bar-12 bar
Product Weight:
660 Grams
Size:
Mini
