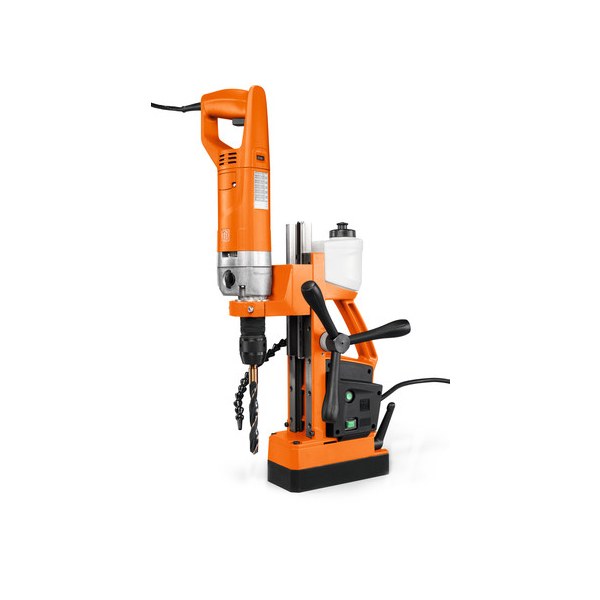

Fein MBS 25 F - 25mm M 20 Magnetic Drill Jig


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Fein MBS 25 F - 25mm M 20 Magnetic Drill Jig

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Universal suitability for drilling, tapping, reaming and countersinking.
  • Fine adjustment of the drill spindle for convenient tool alignment.
  • Double drill motor guide for use with very large drilling tools.
  • Feed handwheel can be moved from one side to the other.
  • Integrated coolant tank with flexible jointed hose.
  • High magnetic holding force.
  • Carriage height adjustable without tools.
Product Specifications

GENERAL

Brand:
Fein
Cable Length:
4 meters
Collar diameter:
53 mm
Contents:
1 coolant tank, 1 lashing strap, 1 contact guard, 1 reducing ring diameter 43 mm
Magnetic foot dimension:
205 x 95 mm
Magnetic Holding Power:
14000 N
Max Countersinking Diameter:
50 mm
Max Reaming:
25 mm
Max Socket:
16 A
Max Twist Drill:
25 mm
Model:
MBS 25 F
Part Number:
90319223000
Power:
100 W
Stroke:
145 mm
Tapping:
M 20
Total Stroke Range:
290 mm
Weight:
12.5 Kg
