Buy Extech MA220 - 400 A Autoranging Clamp Meter Online

Extech MA220 - 400 A Autoranging Clamp Meter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Extech MA220 - 400 A Autoranging Clamp Meter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

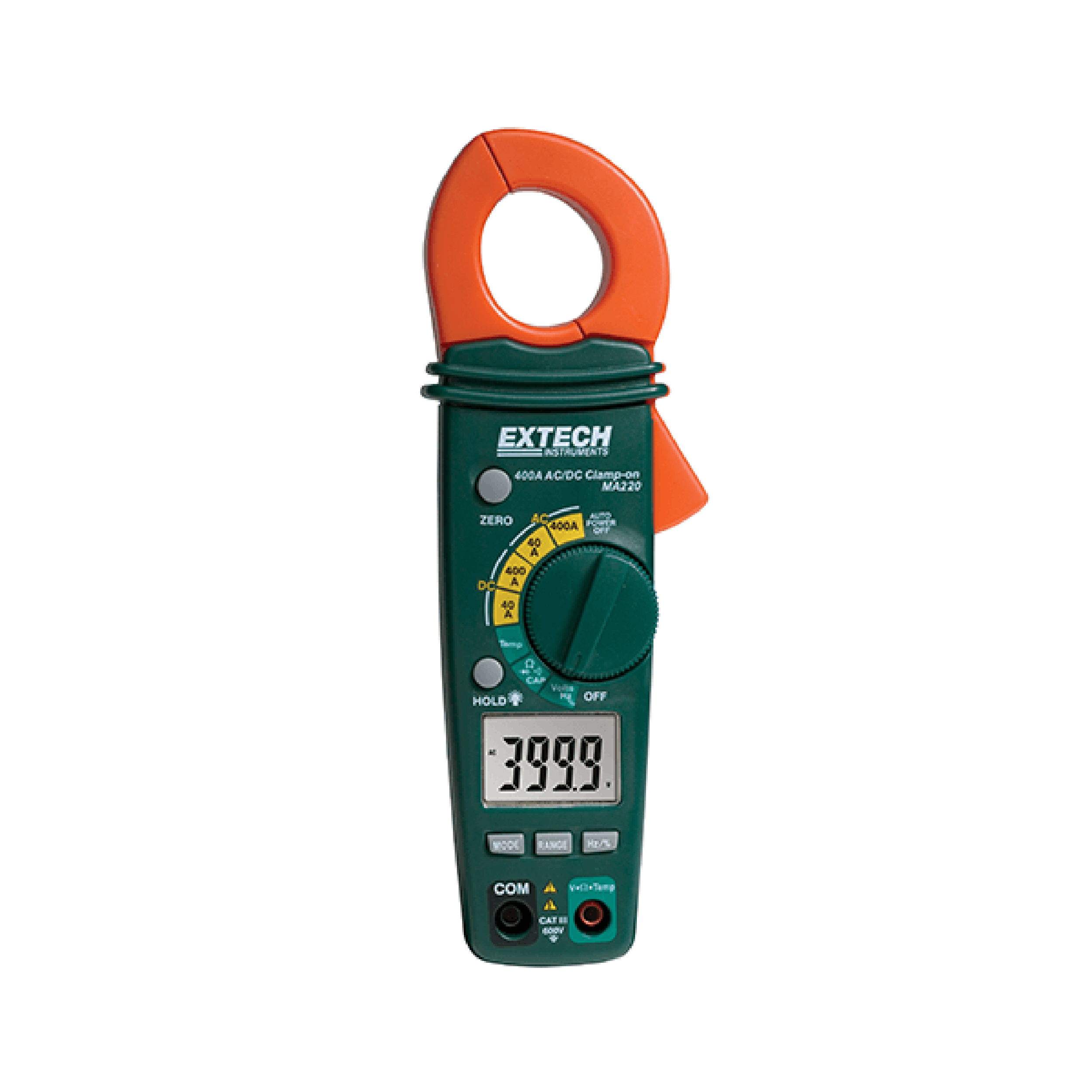

The Extech MA220 Compact Clamp Meter offers high accuracy for current measurements and its compact size allows measurements in tight locations. The MA220's functions include AC, DC voltage, AC, DC current, Capacitance, Frequency, Temperature. The MA220 also has a 4,000 count LCD display, data hold, auto zero on start up, as well as auto ranging and auto power off. This clamp meter has a jaw size that accommodates conductors up to 300 MCM. Comes with test leads, Type K bead wire temperature probe, case, two AAA batteries, and user guide.

Product Specifications

GENERAL

AC current:
40 A, 400 A
AC voltage:
400 mV, 4 V, 40 V, 400 V, 600 V
Brand:
Extech
Capacitance:
40 nF, 400 nF, 4 micro F, 40 micro F, 100 micro F
DC current:
40 A, 400 A
DC voltage:
400 mV, 4 V, 40 V, 400 V, 600 V
Dimensions:
7.9x2x1.4 inch, 200x50x35 mm
Frequency:
5 Hz, 50 Hz, 500 Hz, 5 kHz, 150 kHz
Model:
MA220
Resistance:
400 Ohm, 4kOhm, 40 kOhm, 400 kOhm, 4 MOhm, 40 MOhm
Temperature:
-58 to 1830 Deg F, -50 to 1000 Deg C
Weight:
200 g
