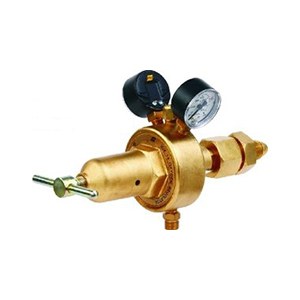

ESAB - High Flow Oxygen Regulator is a high-quality quality Oxygen Regulator from ESAB. All ESAB IOX 14 High flow Oxygen Regulators are manufactured using quality assured material and advanced techniques, making them highly safe and efficient. For extra high performance, this regulator can meet service demands where high flow oxygen is required. The safety pressure limits up to 300 bar, and the service pressure confirms up to EN-837 standards. There are 2 inlets, A and B, with 124 and 14 bars respectively in the Oxygen Regulator. The maximum inlet pressure is 200 bar. The maximum flow of the cylinder is 3500 LPM, and for the pipeline, it is 2594 LMP at 14bar.
Product specifications:
Model Name/Number: IOX 14 (HIGH FLOW) OXYGEN
Product: High Flow Oxygen Regulator
Usage/Application: INDUSTRIAL
Packaging Type: Box
Inlet Pressure: 124 BAR
Pressure: 14 BAR
Cylinder Connection: 5/8" BSP (MALE)
Flow Rate: 3500 LPM
Max Input Pressure: A - Inlet 124 bar, B - Inlet 14 bar
Gases: OXYGEN
Brand: ESAB
Key features:
Used for heavy cutting
Thermal lancing
Light scarfing
It can also be used with cylinders and pipelines
