Description

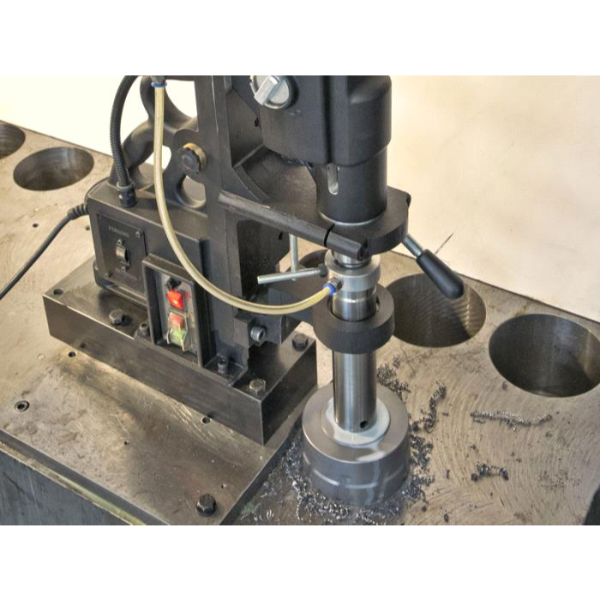

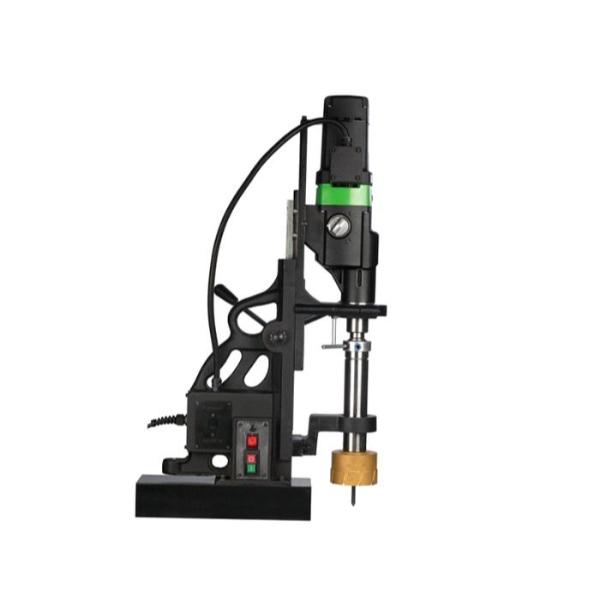

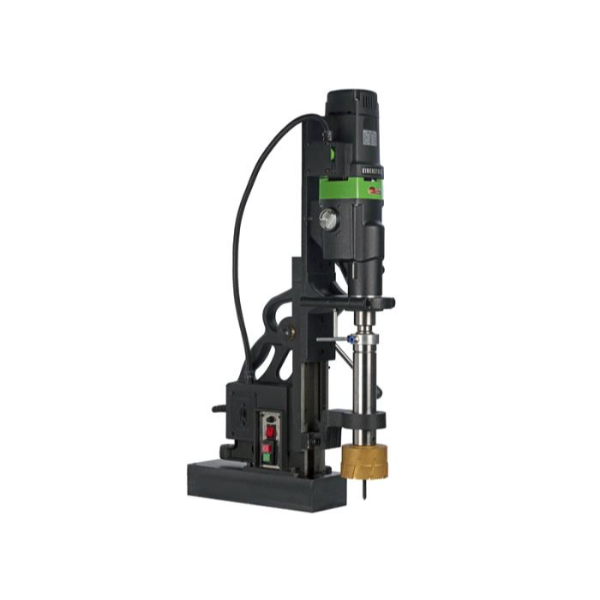

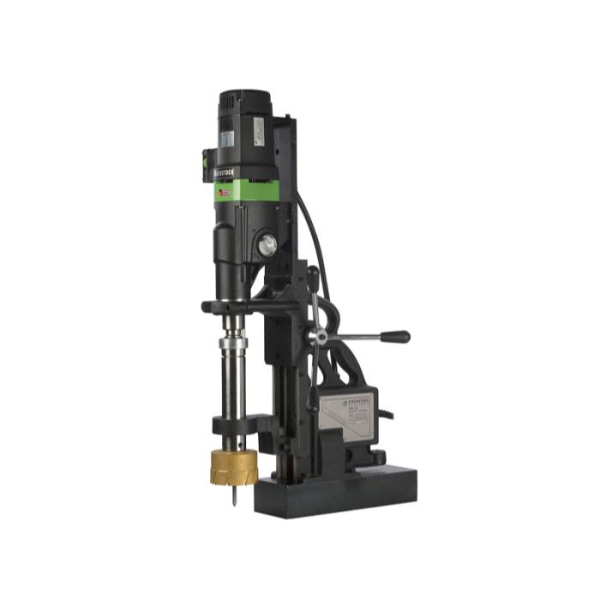

Eibenstock KBM 130 - 130 mm Magnetic Core Drilling Machine is used in building and vehicle construction. It can drill in steel from 12mm – 130 mm diameter in up to 110 mm steel. This Magnetic Core Drilling Machine has 4 speed mechanical and electronic speed control motors and an MK4 spindle to work efficiently. Eibenstock Magnetic Core Drilling Machine KBM 130 can work in both reverse and forward order which allows it to tap up to M42. It has a mechanical safety clutch and a safety belt. Due to its 4-speed control motors, this Magnetic Core Drilling Machine has an easy lever change function. It has a powerful electromagnet that is guarded by safety fuse protection. The Internal spindle cooling system of Eibenstock Magnetic Core Drilling Machine KBM 130 helps in preventing its powerful motor from overheating.

Product specifications:

Rated Voltage (V) : 220-240

Power input- 2300 W

Maximum core cutting capacity- 110 mm

Weight- 50 kg

Electro torque control

Thermal overload protection

Product Specifications

GENERAL

Brand:
Eibenstock
Country of Origin:
Germany/India
Direct Arbor:
32 mm Weldon
Electro Torque Control:
Yes
Max Core Cutting Depth:
110 mm
Maximum Reaming:
50 mm
Maximum Twist Drill Capacity:
45 mm
Model:
KBM 130
Morse Taper:
MT 4
Power:
2300 W
Rated Voltage:
220-240 V
Tapping Capacity:
up to M42 mm
Thermal Overload Protection:
Yes
Weight:
50 Kgs
