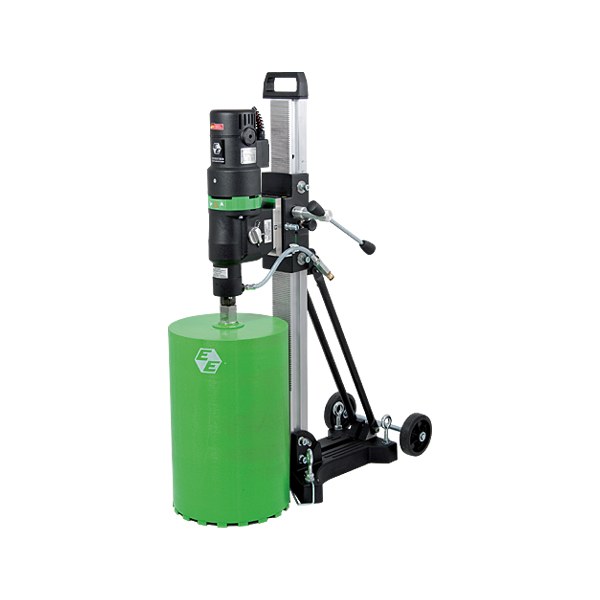

Eibenstock DBE 300 - 300 mm, 2800 W Diamond Core Drilling Unit


Available on Request
OR
Reach Us At +91-9243011081

Eibenstock DBE 300 - 300 mm, 2800 W Diamond Core Drilling Unit

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Applications:

  • Wet drilling in reinforced concrete, natural stone and asphalt
  • Civil engineering

Features:

  • Full aluminium housing - durable and resistant
  • Powerful 2800 W motor - high power reserves
  • Electronic - soft start, temperature control and over current cut-off, overload indication
  • Cut-off carbon brushes - protection of the motor
  • 3-speed oil bath gearbox - for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters
  • Shaft seals replaceable from the outside - easy to service
  • Mechanical safety clutch
  • PUR-construction site cable - strong for heavy duty use
  • Integrated levels on machine and on the carriage, scale and hole center indicator on the drill rig - exact drilling
  • Quick-change plate - easy assembly to the drill rig
  • Column of the rig can be adjusted to 45 degree
  • Compact combination base - fixing with anchor or vacuum (vacuum set necessary)
  • Feed lever change without any tools - easy change of the working site
  • Retrofitable wheel axle (accessory) - easy transport
Product Specifications

GENERAL

Brand:
Eibenstock
Column length:
995 mm
Hub:
600 mm
Max. Drilling Diameter:
25-300 mm
Model:
DBE 300
No Load Speed:
450-1800 rpm
Power:
2800 W
Rated Speed:
270-1250 rpm
Spindle Thread:
1.1/4 inch male
Voltage:
230 V
Weight:
32.1 Kg
