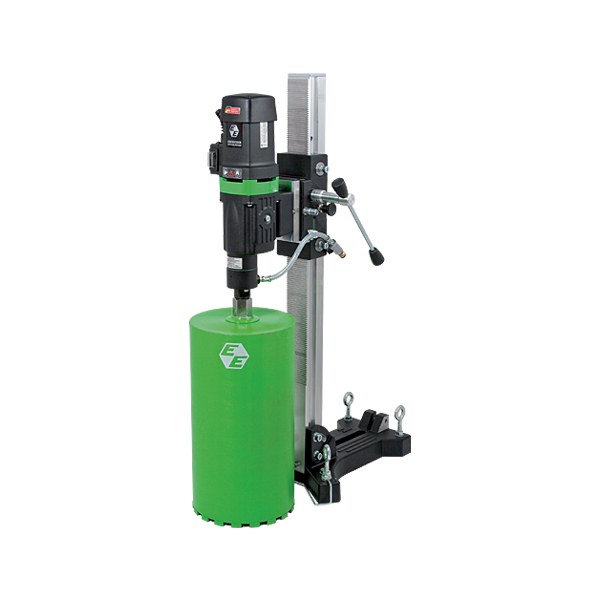

Eibenstock DBE 250 R - 250 mm, 2500 W Diamond Core Drilling Unit


Available on Request
OR
Reach Us At +91-9243011081

Eibenstock DBE 250 R - 250 mm, 2500 W Diamond Core Drilling Unit

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Applications:

  • Wet drilling in reinforced concrete, natural stone and asphalt
  • Electrical installation, sanitary and heating installations, civil engineering, industrialised building

Features:

  • Electronic - soft start, temperature control and over current cut-off, overload indication, constant speed
  • Cut-off carbon brushes - protection of the motor
  • Shaft seals replaceable from the outside - easy to service
  • PUR-construction site cable - strong for heavy duty use
  • Integrated levels on machine and on the carriage, scale and hole center indicator on the drill rig - exact drilling
  • Quick-change plate - easy assembly to the drill rig
  • Column of the rig can be adjusted to 45 degree
  • Compact combination base - fixing with anchor or vacuum (vacuum set necessary)
  • Feed lever change without any tools - easy change of the working site
  • Retrofitable wheel axle (accessory) - easy transport
  • Mechanical oil bath gearbox - for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters
Product Specifications

GENERAL

Brand:
Eibenstock
Column length:
995 mm
Hub:
600 mm
Max. Drilling Diameter:
52-250 mm
Model:
DBE 250 R
Power:
2500 W
Rated Speed:
360-850 rpm
Spindle Thread:
1.1/4 inch male
Voltage:
230 V
Weight:
26.0 Kg
