Buy Eibenstock DBE 162 - 162mm, 2200 W Diamond Core Drilling Unit Online
OUT OF STOCK

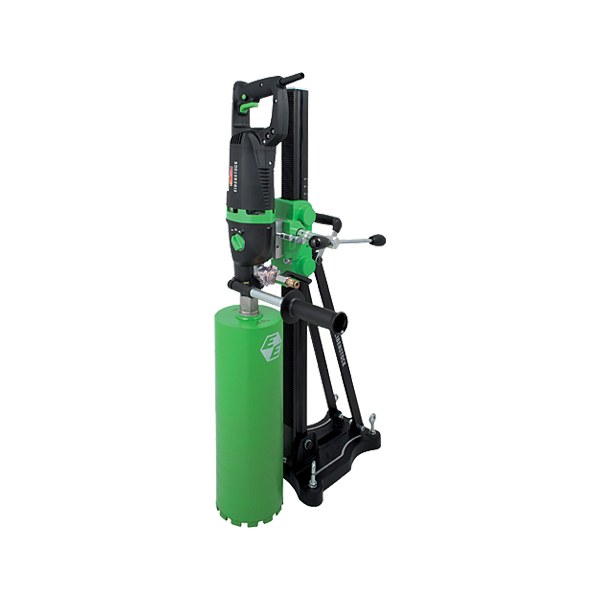

Eibenstock DBE 162 - 162 mm, 2200 W Diamond Core Drilling Unit


Available on Request
OR
Reach Us At +91-9243011081

Eibenstock DBE 162 - 162 mm, 2200 W Diamond Core Drilling Unit

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Applications:

  • Dry drilling in sand-lime brick, brickwork, clinker, brick and other abrasive materials as well as wet drilling in reinforced concrete, natural stone and asphalt
  • Sanitary, heating and ventilation construction, civil engineering, landscape construction

Features:

  • Electronic - soft start, temperature control and over current cut-off, overload indication, constant speed
  • Service indicator - lights up approx. 10 working hours before the carbon brushes need to be replaced
  • 3-speed oil bath gearbox - for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque-speed-ratio for all diameters
  • Mechanical safety clutch
  • Combination spindle with integrated connection for centering rod - fast, precise spot drilling
  • PUR-construction site cable - strong for heavy duty use
  • Changing system - fast conversion between wet and dry applications
  • Integrated levels on machine and additional handle as well as on the carriage, scale and hole center indicator on the drill rig - exact drilling
  • Quick-mounting system - apply the motor to the drill rig without the need for tools
  • Column of the rig can be adjusted to 45 degree
  • Compact combination base - fixing with anchor or vacuum (vacuum set necessary)
  • Feed lever change without any tools - easy change of the working site
  • Retrofitable wheel axle (accessory) - easy transport
Product Specifications

GENERAL

Brand:
Eibenstock
Column length:
995 mm
Hub:
700 mm
Max. Drilling Diameter:
Wet: 12-162 mm, Dry: 12-202 mm
Model:
DBE 162
Power:
2200 W
Rated Speed:
510-2500 rpm
Spindle Thread:
G 1/2 inch female, 1.1/4 inch male
Voltage:
230 V
Weight:
20.7 Kg
