Buy Diamond 24B-2 - 38.10mm Standard Roller Chain European Series- Double Strand Online

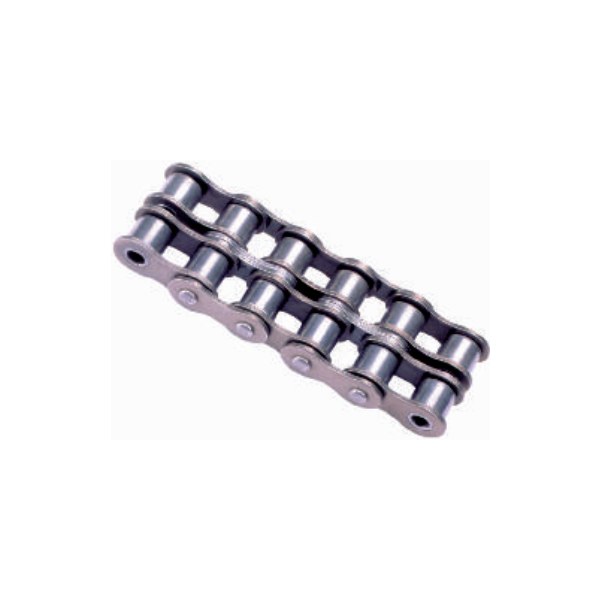

Diamond 24B-2 - 38.10mm Standard Roller Chain European Series- Double Strand


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 10 Feet
OR
Reach Us At +91-9243011081

Diamond 24B-2 - 38.10mm Standard Roller Chain European Series- Double Strand

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

TIDC is one of IndiaÍâ͂s leading manufacturers of power transmission chains for the industrial, automotive and agricultural segment.TIDC India has received the "Commendation Certificate for Strong Commitment to Excel" in 2004. This commendation was from the CII-Exim Bank Award Committee and is a reflection of the strong passion and commitment present at all levels in the organization.

The straight side plate chains are identical to the corresponding European series standard chains except for the straight side plates. The chains have higher fatigue resistance than the standard chains.

The European series of roller chains are designed for use in mechanical power transmission systems.

Product Specifications

GENERAL

Avg. Weight per Metre:
13.50 Kg
Brand:
Diamond
Chain Type:
Double Strand
Diamond Chain No:
D240 02
Manufacturer Details:
3JX6+628, Industrial Model Twp, Jaliawas, Haryana 123501
Max. Bearing Pin Dia:
14.63 mm
Max. Plate Height:
33.40 mm
Max. Roller Dia:
25.40 mm
Max. Width Over Bearing Pin:
101.00 mm
Max. Width over Joint Fastners:
107.60 mm
Model:
24B-2
Packer Details:
3JX6+628, Industrial Model Twp, Jaliawas, Haryana 123501
Pitch:
38.10 mm
Projected Bearing Area:
10.98 Sq.cm
Spares Availability:
B,C,D,E,F
Tensile Strength:
28550 kgf
Transverse Pitch:
48.36 mm
Width Between Inner Plates:
25.40 mm
