Description

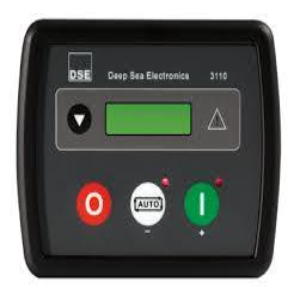

Deep Sea Electronics - 24V Manual & Auto Start Control Module is an excellent compact control module with many functions for single-set applications. The 24 V Manual and Auto Start Control Module have two modes of operation: manual and automatic. The DSE3110 has a back-lit LCD icon that clearly shows the engine's status at all times. In addition, the control module monitors engine speed, frequency, voltage, and run hours and displays the warning and shutdown status. The manual and auto-start control module functions with electronic and non-electronic engines, giving extensive engine monitoring and protection features. The control module can be programmed using either the front Panel or the DSE Configuration Suite PC software.

Product Specifications:

  • Brand: Deep Sea Electronics
  • Frequency range: 3.5 to 75 Hz
  • Maximum Operating Current: 35 mA at 12 V, 30 mA at 24 V
  • Maximum Panel Thickness: 8 mm
  • Model: DSE3110
  • Overall Size: 98x79x40 mm
  • Panel Cut-out Size: 80x68 mm
  • Voltage range: 15 V to 333 V AC L-N
  • Weight: 0.16 Kg

Key Features:

  • Back-lit icon LCD
  • Front panel editing
  • Configurable timers and alarms
  • Alternative configuration
  • Remote Start input
  • Hours counter
  • Engine pre-heat
  • LED and LCD alarm indication
  • Power Save mode
  • Remote Start input
Product Specifications

GENERAL

Brand:
Deep Sea Electronics
Frequency range:
3.5 to 75 Hz
Maximum Operating Current:
35 mA at 12 V, 30 mA at 24 V
Maximum Panel Thickness:
8 mm
Model:
DSE3110
Overall Size:
98x79x40 mm
Panel Cut-out Size:
80x68 mm
Voltage range:
15 V to 333 V AC L-N
Weight:
0.16 Kg
