Description

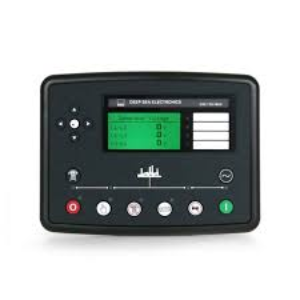

The Deep Sea Electronics - 35 V Auto Mains Failure Control Module is a robust, next-generation Auto Mains (Utility) Failure Genset control module with a high degree of additional capabilities presented in the familiar DSE user-friendly manner. The 35 V Auto Mains Failure Control Module is suitable for a wide range of single-generator, diesel or gas applications. This Auto Mains Failure Control Module has a new Dual-Core main processor and greater memory, delivers quicker and more powerful processing capability, allowing for faster operational responses on heavy programmes and enhanced functionality. In addition, this Mains Failure Control Module also has a data recording feature. The Control Module will show warnings, shutdown, and engine status information on the back-lit LCD screen, lighted LEDs, remote PCs, and via SMS text alerts while it monitors a wide range of engine parameters.

Product Specifications:

Continuous Voltage Rating: 8 to 35 V, 5 V for up to 1 minute

Frequency range: 3.5 to 75 Hz

Maximum Operating Current: 510 mA at 12 V, 240 mA at 24 V

Maximum Panel Thickness: 8 mm

Model: DSE 7320 MK II

Overall Size: 245x184x51 mm

Panel Cut-out Size: 220x160 mm

Key Features:

Robust module

User-friendly format

Powerful processing capability

New features and functions

Product Specifications

GENERAL

Brand:
Deep Sea Electronics
Continuous Voltage Rating:
8 to 35 V, 5 V for up to 1 minute
Frequency range:
3.5 to 75 Hz
Maximum Operating Current:
510 mA at 12 V, 240 mA at 24 V
Maximum Panel Thickness:
8 mm
Model:
DSE 7320 MK II
Overall Size:
245x184x51 mm
Panel Cut-out Size:
220x160 mm
Voltage range:
15 V to 415 V AC Ph to N, 26 V to 719 V AC Ph to Ph
